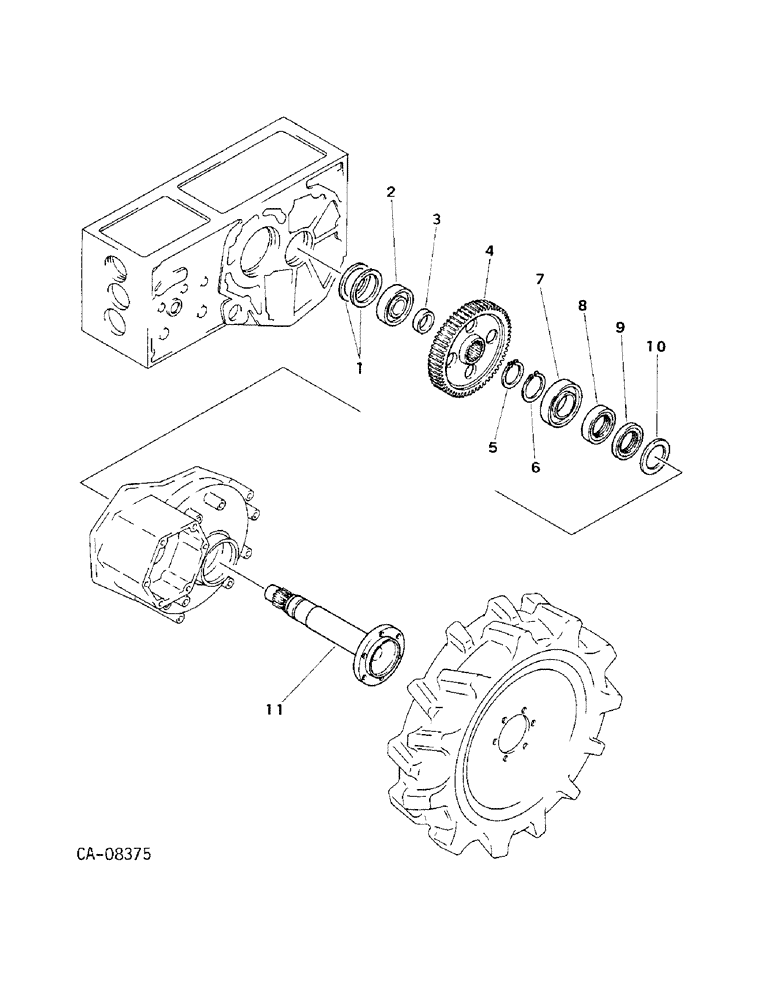

Запчасти Case IH 234 (07-16) - DRIVE TRAIN, DRIVE AXLE, REAR, 234 (04) - Drive Train

1

1273262C1

SHIM

SET

1шт.

2

1271859C91

BEARING, BALL

BEARING ASSY

2шт.

3

1269489C1

SPACER

2шт.

4

1269488C1

GEAR WHEEL

GEAR, 72T

2шт.

5

933075R1

SNAP RING,M40, Ext

RING, 35.72 mm ext ret

2шт.

6

933283R1

SNAP RING,M45, Ext

RING, 40.72 mm ext ret

2шт.

7

1271860C91

BEARING, BALL

BEARING ASSY

2шт.

8

1273185C1

OIL SEAL

OIL SEAL

2шт.

9

1273177C1

OIL SEAL

OIL SEAL

2шт.

10

1269490C1

WASHER

2шт.

11

1269491C1

SHAFT HOUSING

SHAFT, final

2шт.
