(07-14) - DRIVE TRAIN, FRONT DRIVE PTO, 234, FOUR WHEEL DRIVE

Запчасти Case IH 234 (07-14) - DRIVE TRAIN, FRONT DRIVE PTO, 234, FOUR WHEEL DRIVE (04) - Drive Train

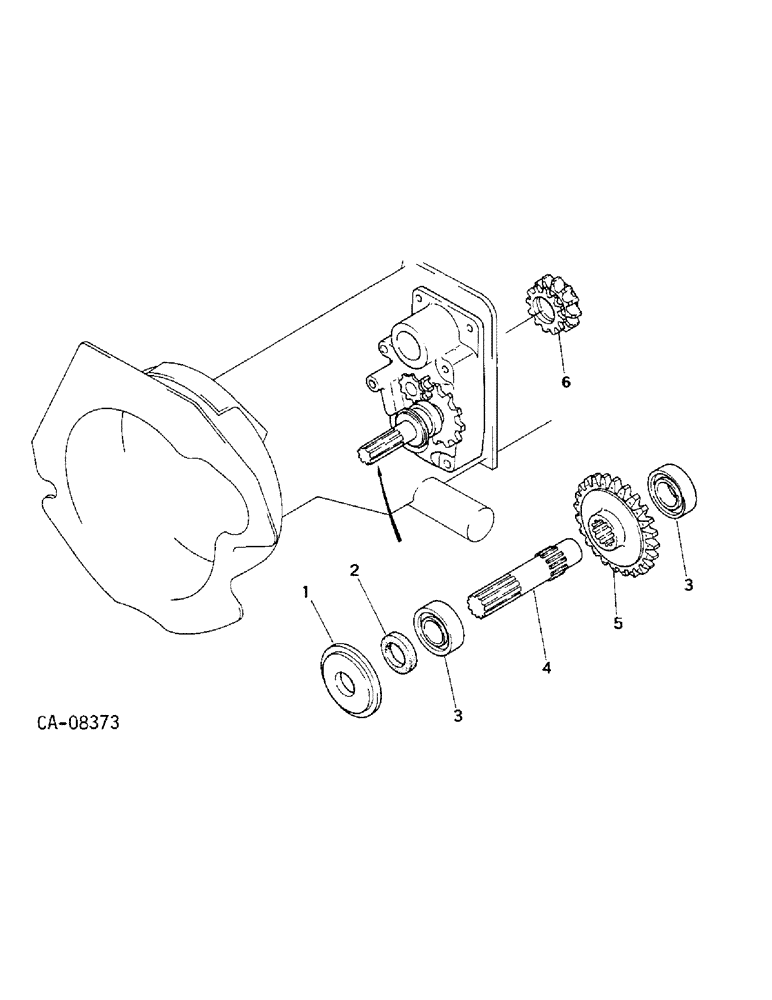

Схема запчастей Case IH 234 - (07-14) - DRIVE TRAIN, FRONT DRIVE PTO, 234, FOUR WHEEL DRIVE (04) - Drive Train
5
3
1
3
2
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1269406C1

MISC PACKAGING

PACKING

1шт.

2

1273179C1

OIL SEAL

SEAL, oil

1шт.

3

1271855C91

BEARING, BALL

2шт.

4

1269407C1

SHAFT HOUSING

SHAFT, PTO

1шт.

5

1269408C1

GEAR

34T

1шт.

6

1269409C1

GEAR

- 16T

1шт.
