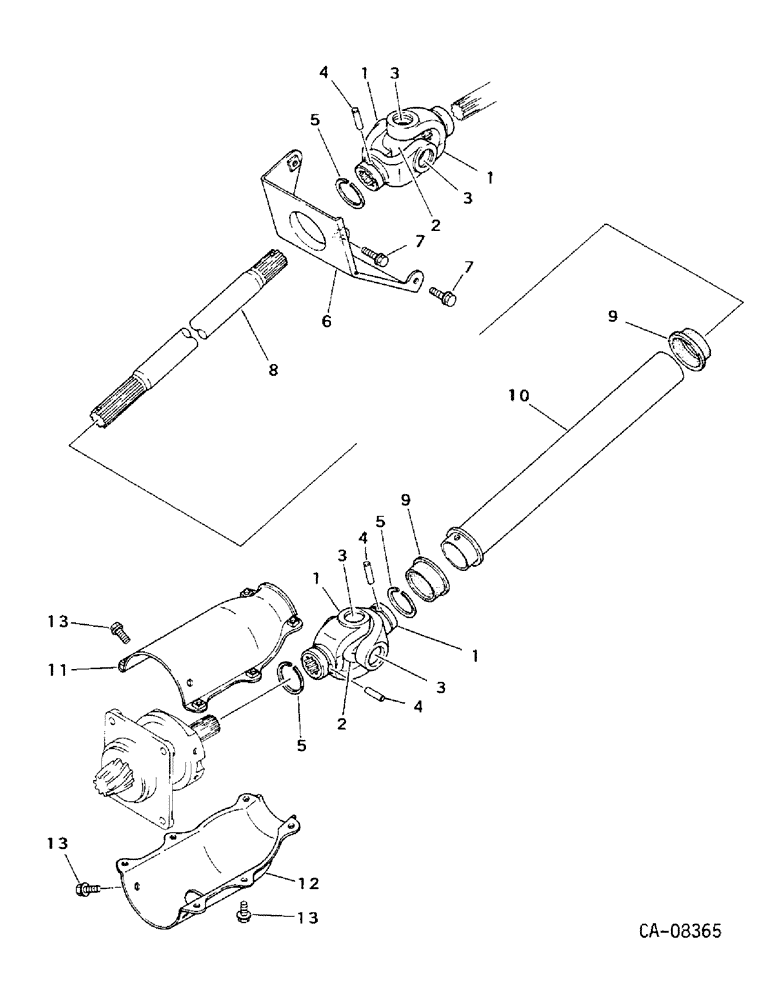

Запчасти Case IH 234 (07-11) - DRIVE TRAIN, DRIVE AXLE, FRONT, 234, FOUR WHEEL DRIVE (04) - Drive Train

1

1269830C91

JOINT TURNING

JOINT ASSY, universal, includes ref nos. 2 & 3

2шт.

2

1269831C1

KIT

journal

2шт.

3

933845R1

RING,M20, Int

RING, 21.29 mm int ret

8шт.

4

30778R1

DOWEL,M6 x 30

PIN, 6 x 30 mm pln hdn dowel

3шт.

5

1269833C2

RING, SNAP

3шт.

6

1269834C1

COVER ASSY

COVER

1шт.

7

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

8

1269835C1

SHAFT

propeller, gear drive tractors w/serial no., 008623 and below, hydrostatic tractors w/serial no. 008122 and below

1шт.

8

1282590C1

SHAFT HOUSING

SHAFT, propeller, gear drive tractors w/serial no. 008624 and above, hydrostatic tractors w/serial no. 008123 and above

1шт.

9

1269836C1

SEAL

SEAL, rubber cushion

2шт.

10

1269837C1

TUBE,38.1 mm OD, 382 mm Length

shaft cover, gear drive tractors w/serial no. 008623 and below, hydrostatic tractors w/serial no. 008122 and below

1шт.

10

1282591C1

TUBE,38.1 mm OD, 504 mm Length

shaft cover, gear drive tractors w/serial no. 008624 and above, hydrostatic tractors w/serial no. 008123 and above

1шт.

11

1269838C1

COVER ASSY

COVER, upper

1шт.

12

1269839C1

COVER ASSY

COVER, lower

1шт.

13

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

10шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

10шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6 mm

10шт.
