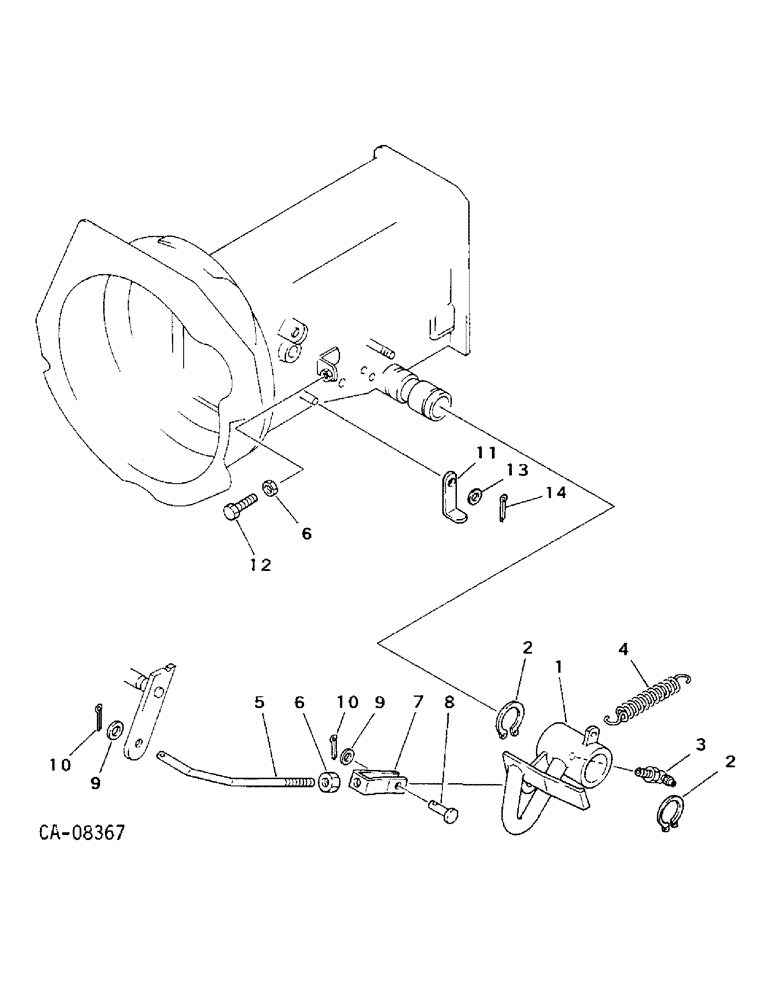

Запчасти Case IH 234 (07-01) - DRIVE TRAIN, CLUTCH PEDAL LINKAGE, 234 (04) - Drive Train

1

1269801C1

PEDAL

clutch

1шт.

2

933804R1

SNAP RING,M38, Ext

RING, 34.7 mm ext ret

2шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF short 65D lub

1шт.

4

1269807C1

VALVE SPRING

SPRING

1шт.

5

1269802C1

ROD

1шт.

6

30167R1

NUT,M8, Cl 10

M8 PHC class 10

2шт.

7

1275126C1

YOKE

1шт.

8

30569R1

CLEVIS PIN,M8 x 25

PIN, 8 x 25 mm PHC clevis

1шт.

9

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

2шт.

10

932952R1

COTTER PIN,M2 x 20

PIN, 2 x 20 mm pln cot.

2шт.

11

1275127C1

SUPPORT ASSY.

SUPPORT

1шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

13

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

2шт.

14

934788R1

COTTER PIN,M2 x 16

PIN, 2 x 16 mm pln cot.

1шт.
