(15-03) - WHEELS AND TRACTION, REAR WHEELS, 234 TRACTORS

Запчасти Case IH 234 (15-03) - WHEELS AND TRACTION, REAR WHEELS, 234 TRACTORS Wheels & Traction

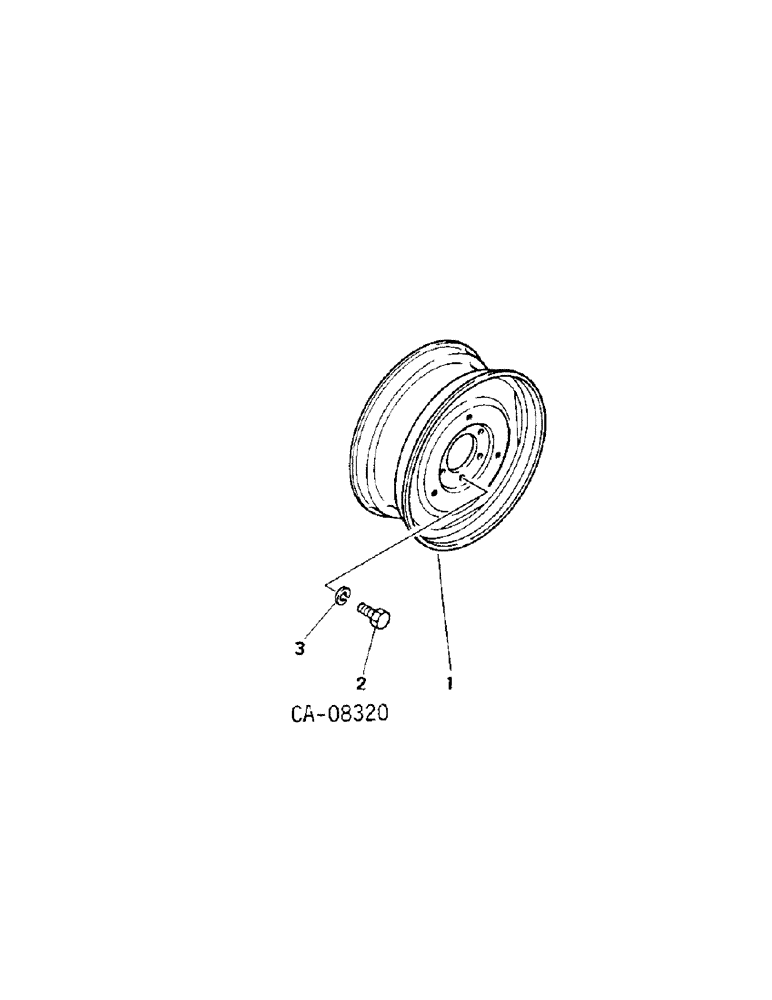

Схема запчастей Case IH 234 - (15-03) - WHEELS AND TRACTION, REAR WHEELS, 234 TRACTORS Wheels & Traction
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1271840C1

WHEEL (STEERING)

WHEEL, W6 x 18, for 8.00-18 4PR tire

2шт.

1

1271844C1

WHEEL (STEERING)

WHEEL, W8 x 18, for 9.5-18 turf tire

2шт.

1

1288398C1

WHEEL (STEERING)

WHEEL, 13LB x 15, for 15.5-15 turf tire

2шт.

2

1273630C1

BOLT,Hex, M14 x 1.5 x 30mm

wheel mtg

12шт.

3

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

12шт.
