Запчасти Case IH 234 (15-02) - WHEELS AND TRACTION, FRONT WHEELS, SPLIT TYPE, 234, TWO WHEEL DRIVE, WITH TURF TIRES Wheels & Traction

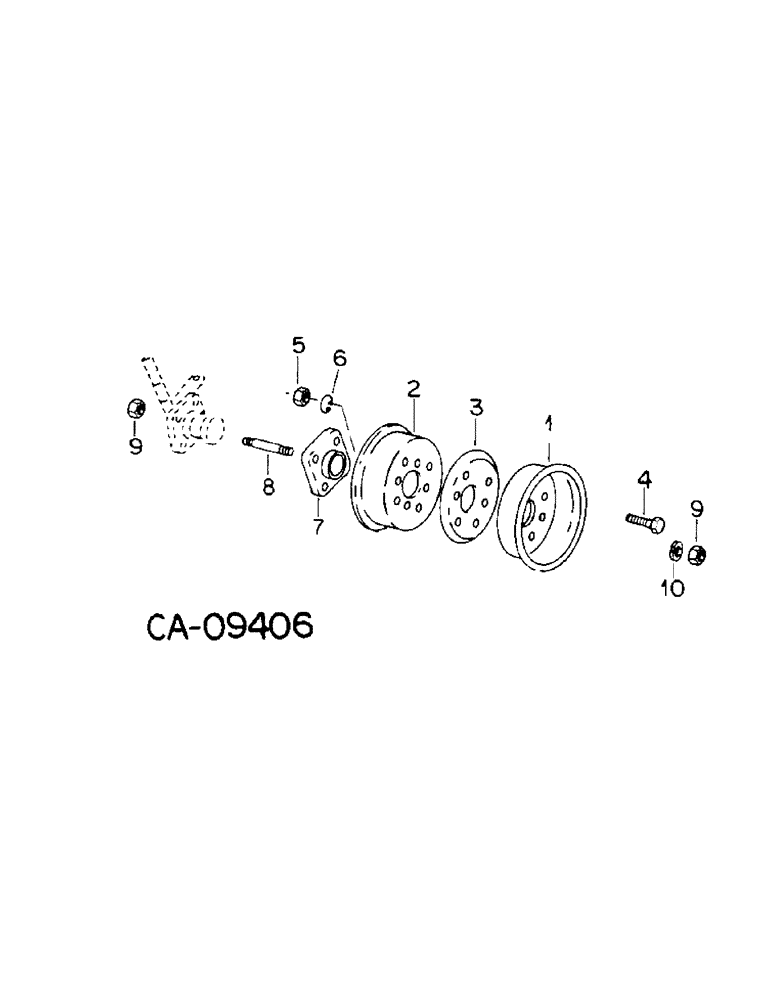

Схема запчастей Case IH 234 - (15-02) - WHEELS AND TRACTION, FRONT WHEELS, SPLIT TYPE, 234, TWO WHEEL DRIVE, WITH TURF TIRES Wheels & Traction
2
10
4
8
6
1
9
7
9
5
3

Артикул

Название

Примечание

Количество

1

1288395C1

RIM

WHEEL, outer, 5.50 x 8 DT, for 18 x 7.00 R3 4PR turf tire

2шт.

2

1288396C1

RIM

WHEEL, inner, 5.50 x 8 DT, for 18 x 7.00 R3 4PR turf tire

2шт.

3

1288400C1

GASKET

wheel

2шт.

4

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

5

30167R1

NUT,M8, Cl 10

M8 PHC class 10

8шт.

6

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

8шт.

7

1288397C1

SPACER

2шт.

8

1288399C1

STUD,M14 x 1.5 x 60mm

BOLT, stud

1шт.

9

1282721C1

NUT

16шт.

10

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

8шт.

Выбрано товаров: 10
