Запчасти Case IH 234 (15-01) - WHEEL AND TRACTION, FRONT WHEELS, SPLIT TYPE, 234, TWO AND FOUR WHEEL DRIVE Wheels & Traction

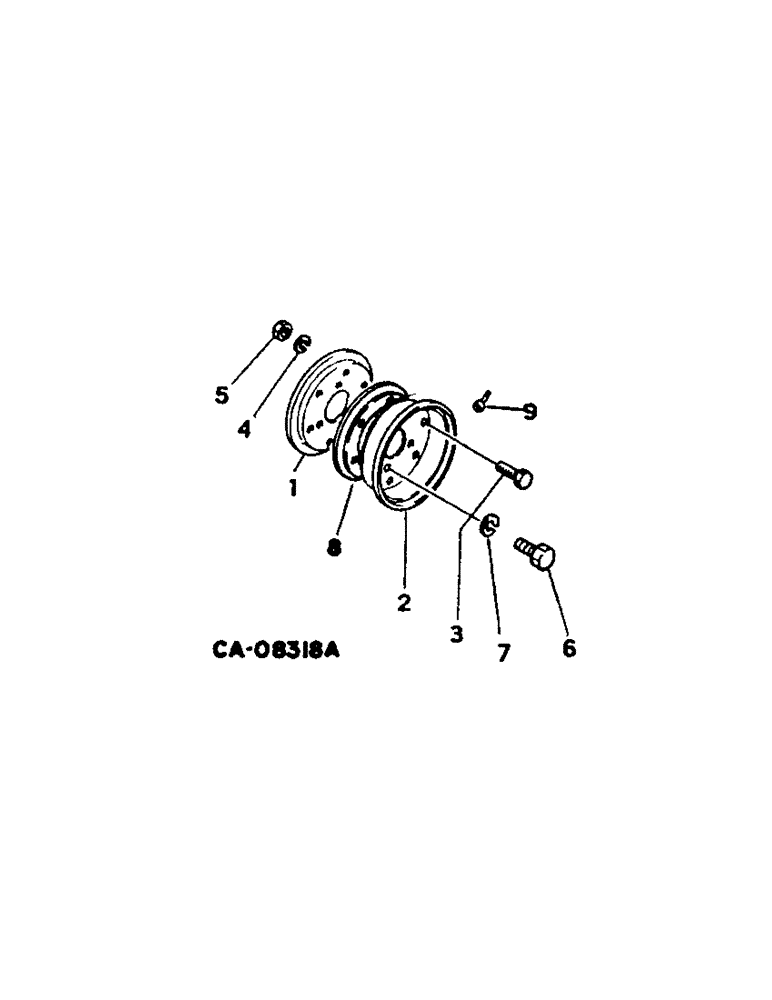

Схема запчастей Case IH 234 - (15-01) - WHEEL AND TRACTION, FRONT WHEELS, SPLIT TYPE, 234, TWO AND FOUR WHEEL DRIVE Wheels & Traction
4
3
7
2
1
8
5
6
9

Артикул

Название

Примечание

Количество

1

1271838C1

WHEEL (STEERING)

WHEEL, outer, 3.00D-10, for 4.50 x 10 F2 4PR tire

2шт.

1

1271842C1

RIM

WHEEL, outer, 6.00I x 10DT, for 20 x 8.00-10 R3 tire

2шт.

1

1288401C1

RIM

WHEEL, outer, 6.00I x 10DT (turf), for 20 x 8.00-10 R3 turf tire

2шт.

2

1271839C1

WHEEL (STEERING)

WHEEL, inner, 3.00D-10, for 4.50 x 10 F2 4PR tire

2шт.

2

1271843C1

WHEEL (STEERING)

WHEEL, inner, 6.00I x 10DT, for 20 x 8.00-10 R3 tire

2шт.

2

1288402C1

RIM

WHEEL, inner, 6.00I x 10DT (turf), for 20 x 8.00-10 R3 turf tire

2шт.

3

1269762C1

BOLT,Hex, M10 x 1.25 x 20mm

BOLT, wheel

1шт.

4

933965R1

LOCK WASHER,M10

1шт.

5

825-11410

NUT,M10 x 1.25, Cl 8

Wheel M10 x 1.25, Cl 8

1шт.

6

1273629C1

BOLT,Hex, M14 x 1.5 x 25mm

BOLT, wheel mtg

8шт.

6

1273397C1

BOLT,Hex, M12 x 1.25 x 25mm

BOLT, wheel mtg (four wheel drive)

10шт.

7

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

8шт.

7

933966R1

LOCK WASHER,M12

WASHER, 12mm lock (four wheel drive)

10шт.

8

1282646C1

GASKET

wheel

2шт.

9

387897R91

VALVE STEM

VALVE, TR 412 (replaces 27746R1)

2шт.

Выбрано товаров: 15
