(15-01[1]) - WHEELS AND TRACTION, FRONT WHEELS, 5 BOLT HUB, 234, FOUR WHEEL DRIVE

Запчасти Case IH 234 (15-01[1]) - WHEELS AND TRACTION, FRONT WHEELS, 5 BOLT HUB, 234, FOUR WHEEL DRIVE Wheels & Traction

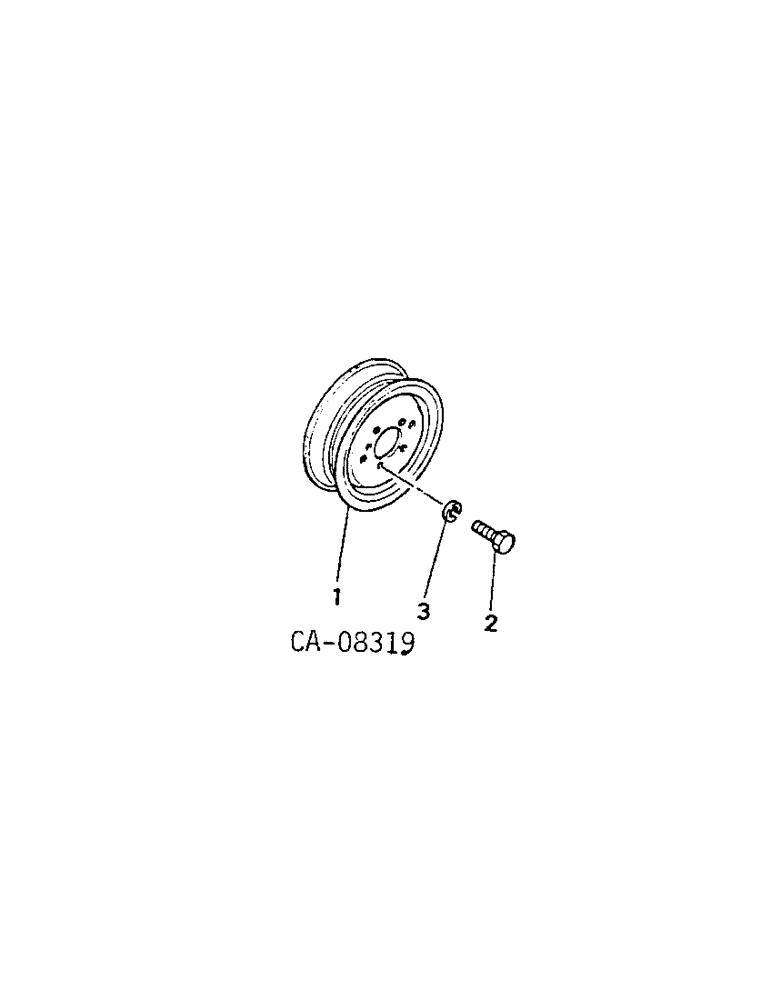

Схема запчастей Case IH 234 - (15-01[1]) - WHEELS AND TRACTION, FRONT WHEELS, 5 BOLT HUB, 234, FOUR WHEEL DRIVE Wheels & Traction
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1271841C1

WHEEL (STEERING)

WHEEL, 4JA x 12 wdc, for 5.00-12 R1 4PR tire

2шт.

1

1271845C1

WHEEL

5JA x 12, for 6.00 x 12 R3 tire

2шт.

2

1273397C1

BOLT,Hex, M12 x 1.25 x 25mm

BOLT, wheel mtg

10шт.

3

933966R1

LOCK WASHER,M12

WASHER, 12mm lock

10шт.
