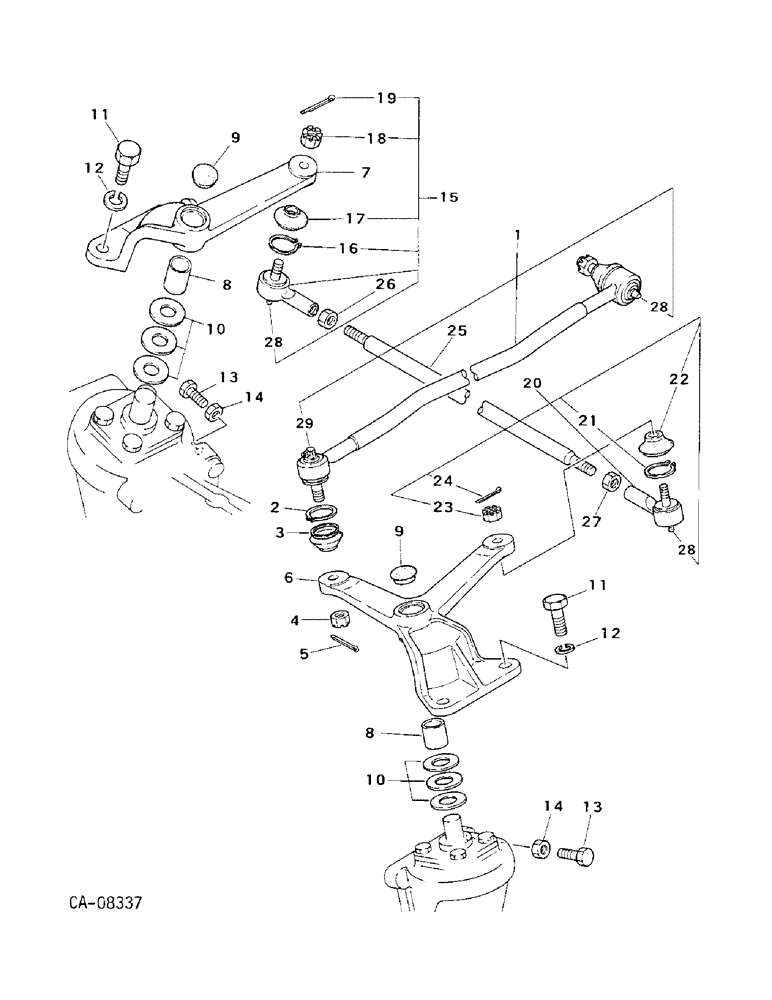

Запчасти Case IH 234 (14-09) - SUSPENSION, DRAG LINK AND TIE ROD, FOUR WHEEL DRIVE, 234 Suspension

1

1273533C91

ROD ASSY.

ROD ASSY (drag link), includes ref nos. 2, 3, 4, 5, 29 and fitting, 1273649C1, gear drive tractors w/serial no. 008623 and below, hydrostatic tractors w/serial no. 008122 and below

1шт.

1

1282595C91

ROD

ASSY (drag link), includes ref nos 2, 3, 4, 5, 29 and fitting, 1273649C1

1шт.

2

1273528C1

RING

snap

2шт.

3

1273527C1

COVER ASSY

COVER, dust

2шт.

4

1271875C1

NUT

castellated

2шт.

5

934793R1

COTTER PIN,M3.2 x 25

PIN, 3.2 x 25mm pln cot.

2шт.

6

1273534C1

ARM

knuckle

1шт.

7

1273535C1

ARM

tie rod

1шт.

8

1273285C1

SPACER

BUSHING

2шт.

9

1273537C1

PLUG

2шт.

10

1273542C2

SHIM

SET, 12 in set, (or as required)

2шт.

11

1273538C1

STEP BOLT,Hex, M12 x 1.25 x 35mm

BOLT, reamer

4шт.

12

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

4шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

14

30167R1

NUT,M8, Cl 10

M8 PHC class 10

2шт.

15

1273539C91

END ASSY.

END ASSY, tie rod RH

1шт.

16

1273528C1

RING

snap

1шт.

17

1273527C1

COVER ASSY

COVER, dust

1шт.

18

1271875C1

NUT

castellated

1шт.

19

934793R1

COTTER PIN,M3.2 x 25

PIN, 3.2 x 25mm pln cot.

1шт.

20

1273540C91

END ASSY.

END ASSY, tie rod LH

1шт.

21

1273528C1

RING

snap

1шт.

22

1273527C1

COVER ASSY

COVER, dust

1шт.

23

1271875C1

NUT

castellated

1шт.

24

934793R1

COTTER PIN,M3.2 x 25

PIN, 3.2 x 25mm pln cot.

1шт.

25

1273541C1

TURNBUCKLE

tie rod

1шт.

26

825-11412

NUT,M12 x 1.25, Cl 8

1шт.

27

1269785C1

NUT

1шт.

28

1273649C1

FITTING

M-6 lube

3шт.

29

17295R1

FITTING, 1/4 PTF x/short 65D lub

1шт.
