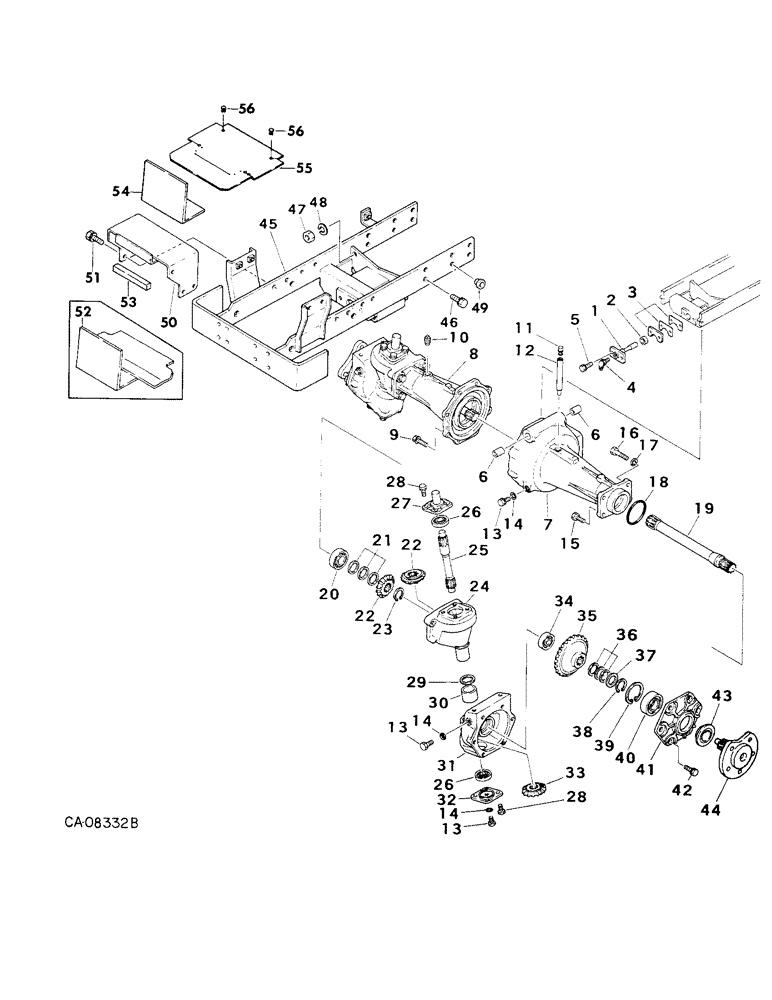

Запчасти Case IH 234 (14-05) - SUSPENSION, FRONT AXLE, FOUR WHEEL DRIVE, 234 Suspension

1

1273280C1

SHAFT HOUSING

SHAFT, center

1шт.

2

1273281C1

SPACER

collar

1шт.

3

1273282C1

SHIM

SET

1шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF short 65D lub

1шт.

5

1269763C1

BOLT

2шт.

933965R1

LOCK WASHER,M10

2шт.

6

1273285C1

SPACER

BUSHING

2шт.

7

1273283C91

HOUSING

ASSY, LH, includes two bushings, 1273285C1

1шт.

8

1273286C1

HOUSING

RH

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

8шт.

10

103885

PLUG,Slotted, 3/8" NPT

3/8 pln slt/hdl pipe

1шт.

11

1273287C1

PLUG

vent

1шт.

12

1273288C1

VENTILATION PIPE,13 mm Diameter, 110 mm Length

TUBE, vent plug

1шт.

13

1269630C1

BOLT,M8 x 1.25 x 12mm

BOLT, housing drain plug

5шт.

14

1275284C1

SEALING WASHER

SEAL, drain, replaces 1269631C1

5шт.

15

1273289C1

BOLT,Hex, M10 x 1.25 x 30mm

BOLT, reamer

4шт.

16

1273290C1

BOLT,Hex, M10 x 1.25 x 30mm, Full Thd

BOLT

4шт.

17

933965R1

LOCK WASHER,M10

4шт.

18

1269886C1

O-RING

O-RING

2шт.

19

1273291C2

SHAFT HOUSING

SHAFT, differential

2шт.

20

1273292C91

BEARING, BALL,25 mm ID x 52 mm OD x 15 mm

BEARING ASSY

2шт.

21

1273293C1

SHIM

SET

1шт.

22

1288024C1

GEAR WHEEL

GEAR, pinion, 14T, replaces gear, 1273294C1 on gear drive tractors w/serial no. 008683 and below, hydrostatic drive tractors w/serial no. 008122 and below by ordering two gears, 1288024C1

4шт.

23

933128R1

SNAP RING,M25, Ext

RING, 22.78 mm ext ret

2шт.

24

1273295C1

CASE

king pin

2шт.

25

1273296C1

SHAFT HOUSING

SHAFT, king pin

2шт.

26

1273192C91

TAPERED BEARING

ASSY

4шт.

27

1273297C1

NOZZLE HOLDER

HOLDER, bearing

2шт.

28

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

16шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

16шт.

29

1273298C1

OIL SEAL

SEAL, oil

2шт.

30

1273299C1

SPACER

bushing

2шт.

31

1273160C1

CASE

final

2шт.

32

1273161C1

COVER ASSY

COVER

2шт.

33

1273162C1

GEAR WHEEL

GEAR, pinion

2шт.

34

1273163C91

BEARING, BALL,20 mm ID x 47 mm OD x 14 mm

BEARING ASSY

2шт.

35

1273164C1

GEAR WHEEL

GEAR, bevel

2шт.

36

1273165C1

SHIM

SET

1шт.

37

1273166C1

WASHER

2шт.

38

933086R1

SNAP RING,M30, Ext

27.48 mm ext ret

2шт.

39

933108R1

SNAP RING,M62, Int

RING, 65.74 mm int ret

2шт.

40

1271858C91

BALL BEARING

BEARING ASSY

2шт.

41

1273167C1

NOZZLE HOLDER

HOLDER, bearing

2шт.

42

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

12шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

12шт.

43

1273188C1

OIL SEAL

SEAL, oil

2шт.

44

1273168C1

SHAFT HOUSING

SHAFT, wheel

2шт.

45

1273628C2

FRAME

front, gear drive tractors w/serial no. 008623 and below, hydrostatic tractors w/serial no. 008122 and below

1шт.

45

1282593C1

FRAME

front, gear drive tractors w/serial no. 008624 and above, hydrostatic tractors w/serial no. 008123 and above

1шт.

46

1269780C1

BOLT

W/WASHER

8шт.

47

1282721C1

NUT

replaces 1269786C1

2шт.

48

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

2шт.

49

1271889C1

CYLINDER END CAP

CAP, rubber

4шт.

50

1273627C2

BRACKET

1шт.

51

1269760C1

BOLT,Hex, M10 x 1.25 x 16mm

4шт.

933965R1

LOCK WASHER,M10

4шт.

52

1275087C1

COVER

radiator bottom

1шт.

234 gear drive tractors with serial no. 008911 and below, 234 hydrostatic drive tractors with serial no. 008462 and below.

1шт.

53

CUSHION, 25mm x 25mm x 200mm long, furnish 7.87 in./200mm from bulk roll marked, 73215C1

1шт.

234 gear drive tractors with serial no. 008912 and above, 234 hydrostatic drive tractors with serial no. 008463 and above.

1шт.

54

1287976C1

COVER

radiator bottom

1шт.

234 gear drive tractors with serial no. 008912 and above, 234 hydrostatic drive tractors with serial no. 008463 and above.

1шт.

55

1287977C1

BAFFLE

radiator

1шт.

234 gear drive tractors with serial no. 008912 and above, 234 hydrostatic drive tractors with serial no. 008463 and above.

1шт.

56

1287975C1

PLUG

mat, 234 gear drive tractors w/serial no. 008912 and above

2шт.

1287941C91

PACKAGE

radiator baffle, consists of

1шт.

234 gear drive tractors with serial no. 008911 and below, 234 hydrostatic drive tractors with serial no. 008462 and below.

1шт.

1287977C1

BAFFLE

radiator

1шт.

1287975C1

PLUG

2шт.

PLUG, mat, gear drive only (4), cushion, 20mm x 20 mm x 80 mm long (NSS), cushion, 45 mm x 45 mm x 85 mm long (2) (NSS), cushion, 20 mm x 20 mm x 100 mm long (2) (NSS), cushion, 25 mm x 25 mm x 75 mm long (2) (NSS), cushion, 25 mm x 25 mm x 200 mm long (NSS), seal, rubber (2) (NSS)

1шт.

1287976C1

COVER

radiator bottom

1шт.
