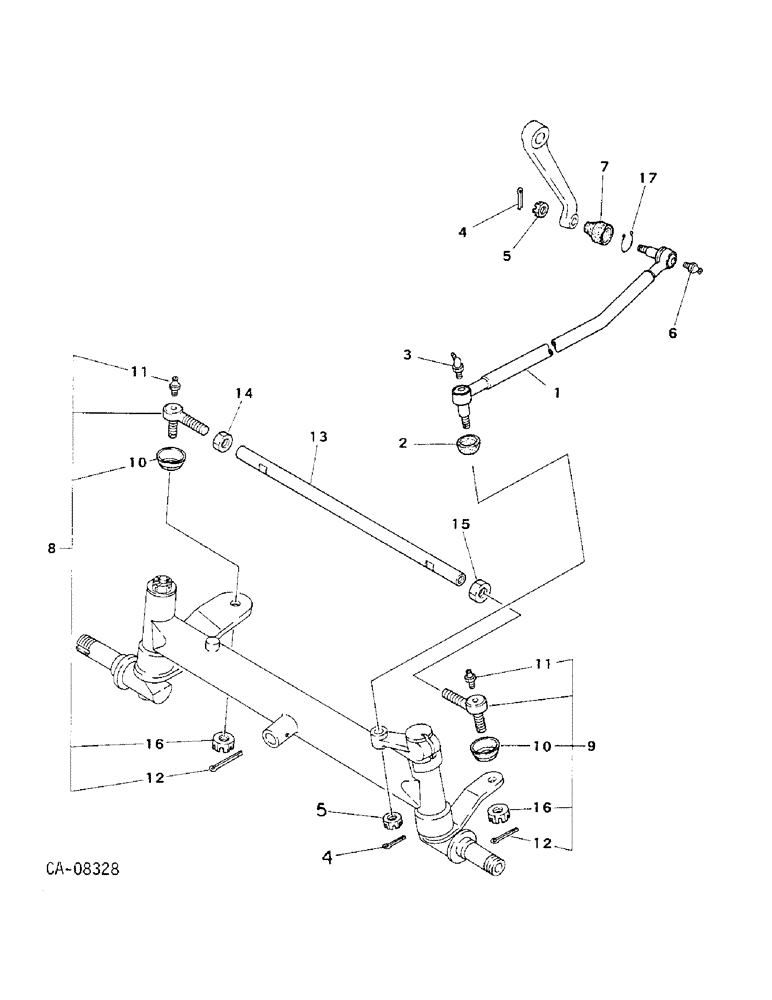

Запчасти Case IH 234 (14-03) - SUSPENSION, DRAG LINK AND TIE ROD, 234 Suspension

1

1273525C91

ROD ASSY.

ROD ASSY, drag link, includes ref nos. 2 - 7 & 17, gear drive tractors w/serial no. 008623 and below, hydrostatic tractors w/serial no. 008122 and below

1шт.

1

1282594C91

ROD

ASSY, drag link, includes ref nos 2 - 7 & 17, gear drive tractors w/serial no. 008624 and above, hydrostatic tractors w/serial no. 008123 and above

1шт.

2

1273526C1

COVER ASSY

COVER, dust

1шт.

3

17295R91

LUBE NIPPLE,90 Degree, 1/4" NPT x 1" lg

FITTING, 1/4 PTF x/short 65D lub

1шт.

4

934793R1

COTTER PIN,M3.2 x 25

PIN, 3.2 x 25mm pln cot.

2шт.

5

1271875C1

NUT

castle

2шт.

6

273349

FITTING

1/4 PTF x/short lub

1шт.

7

1273527C1

COVER ASSY

COVER, dust

1шт.

8

1273529C91

END FITTING

END, RH tie rod

1шт.

9

1273530C91

END ASSY.

END, LH tie rod

1шт.

10

1273526C1

COVER ASSY

COVER, dust

2шт.

11

273349

FITTING

1/4 PTF x/short lub

2шт.

12

934793R1

COTTER PIN,M3.2 x 25

PIN, 3.2 x 25mm pln cot.

2шт.

13

1273531C1

TURNBUCKLE

tie rod

1шт.

14

1269794C1

NUT

jam

1шт.

15

1269795C1

NUT

jam

1шт.

16

1271875C1

NUT

castellated

2шт.

17

1273528C1

RING

snap

1шт.
