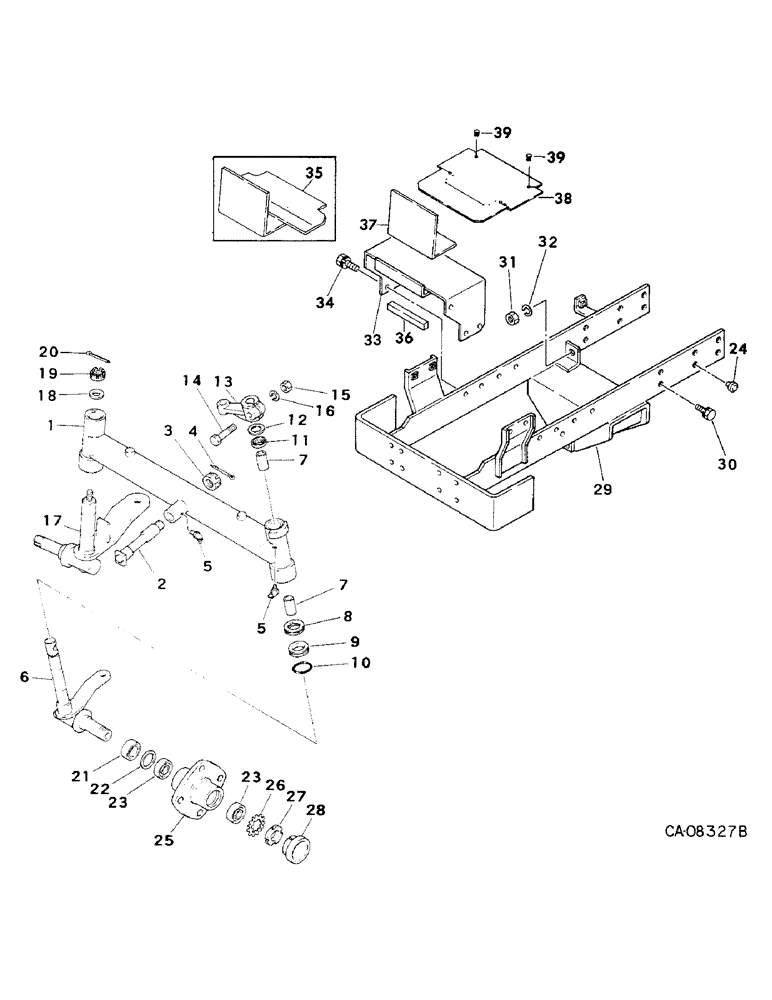

Запчасти Case IH 234 (14-01) - SUSPENSION, NON-ADJUSTABLE FRONT AXLE, 234 Suspension

1

1273268C91

CENTER AXLE

AXLE ASSY, front, includes ref no. 7

1шт.

2

1273271C1

SHAFT HOUSING

SHAFT, pivot

1шт.

3

1271878C1

NUT

castellated

1шт.

4

934532R1

COTTER PIN,M4 x 32

PIN, 4 x 32mm pln cot

1шт.

5

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF short 65D lub

3шт.

Ref. 5 - 219-40 Self-Tapping fitting

1шт.

6

1271879C2

KNUCKLE JOINT

KNUCKLE, LH steering

1шт.

7

1273270C1

SPACER

BUSHING

4шт.

8

1271868C91

BALL BEARING,25 mm ID x 42 mm OD x 11 mm

ASSY

2шт.

9

1271880C1

SPACER

bushing

2шт.

10

1269879C1

O-RING

O-RING

2шт.

11

1271882C1

OIL SEAL

SEAL, oil

2шт.

12

1271883C1

WASHER

1шт.

13

1271884C1

ARM

steering knuckle

1шт.

14

1269765C1

BOLT,Hex, M10 x 1.25 x 50mm

1шт.

15

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

16

933965R1

LOCK WASHER,M10

1шт.

17

1271881C2

KNUCKLE JOINT

KNUCKLE, RH steering

1шт.

18

30328R1

WASHER,M13.5 x 24.5 x 3, HT

13.3 x 24 x 3mm

1шт.

19

1271876C1

NUT

castellated

1шт.

20

934792R1

COTTER PIN,M3.2 x 20

PIN, 3.2 x 20mm pln cot.

1шт.

21

1271885C1

OIL SEAL

SEAL, oil

2шт.

22

1271870C1

SHIM

2шт.

23

1271855C91

BEARING, BALL

BEARING ASSY

4шт.

24

1271889C1

CYLINDER END CAP

CAP, rubber

4шт.

25

1271886C1

HUB CAP

HUB, front wheel

2шт.

26

31100R1

LOCK WASHER

M20 bearing lock

2шт.

27

31098R1

LOCK NUT,M20 x 1, Bearing

NUT, M20 x 1 bearing lock

2шт.

28

1271887C1

CYLINDER END CAP

CAP

2шт.

29

1273626C2

FRAME

front, gear drive tractors w/serial no. 008623 and below, hydrostatic tractors w/serial no. 008122 and below

1шт.

29

1282592C1

FRAME

front, gear drive tractors w/serial no. 008624 and above, hydrostatic tractors w/serial no. 008123 and above

1шт.

30

1269780C1

BOLT

w/washer

8шт.

31

1282721C1

NUT

replaces 1269786C1

2шт.

32

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

2шт.

33

1273627C2

BRACKET

1шт.

34

1269760C1

BOLT,Hex, M10 x 1.25 x 16mm

4шт.

933965R1

LOCK WASHER,M10

4шт.

35

1275087C1

COVER

radiator bottom

1шт.

234 gear drive tractors with serial no. 008911 and below, 234 hydrostatic drive tractors with serial no. 008462 and below.

1шт.

36

CUSHION, 25mm x 25mm x 200mm long, furnish 7.87 in./200mm from bulk roll marked, 73215C1

1шт.

234 gear drive tractors with serial no. 008912 and above, 234 hydrostatic drive tractors with serial no. 008463 and above.

1шт.

37

1287976C1

COVER

radiator bottom

1шт.

234 gear drive tractors with serial no. 008912 and above, 234 hydrostatic drive tractors with serial no. 008463 and above.

1шт.

38

1287977C1

BAFFLE

radiator

1шт.

234 gear drive tractors with serial no. 008912 and above, 234 hydrostatic drive tractors with serial no. 008463 and above.

1шт.

39

1287975C1

PLUG

mat, 234 gear drive tractors w/serial no. 008912 and above

2шт.

1287941C91

PACKAGE

radiator baffle, consists of

1шт.

234 gear drive tractors with serial no. 008911 and below, 234 hydrostatic drive tractors with serial no. 008462 and below.

1шт.

1287977C1

BAFFLE

radiator

1шт.

1287975C1

PLUG

2шт.

Mat, gear drive only, cushion, 20 mm x 20 mm x 80 mm long (4) (NSS), cushion, 45 mm x 45 mm x 85 mm long (2) (NSS), cushion, 20 mm x 20 mm x 100 mm long (2) (NSS), cushion, 25 mm x 25 mm x 75 mm long (NSS) (2), cushion, 25 mm x 25 mm x 200 mm long (NSS), seal, rubber (2) (NSS)

1шт.

1287976C1

COVER

radiator bottom

1шт.
