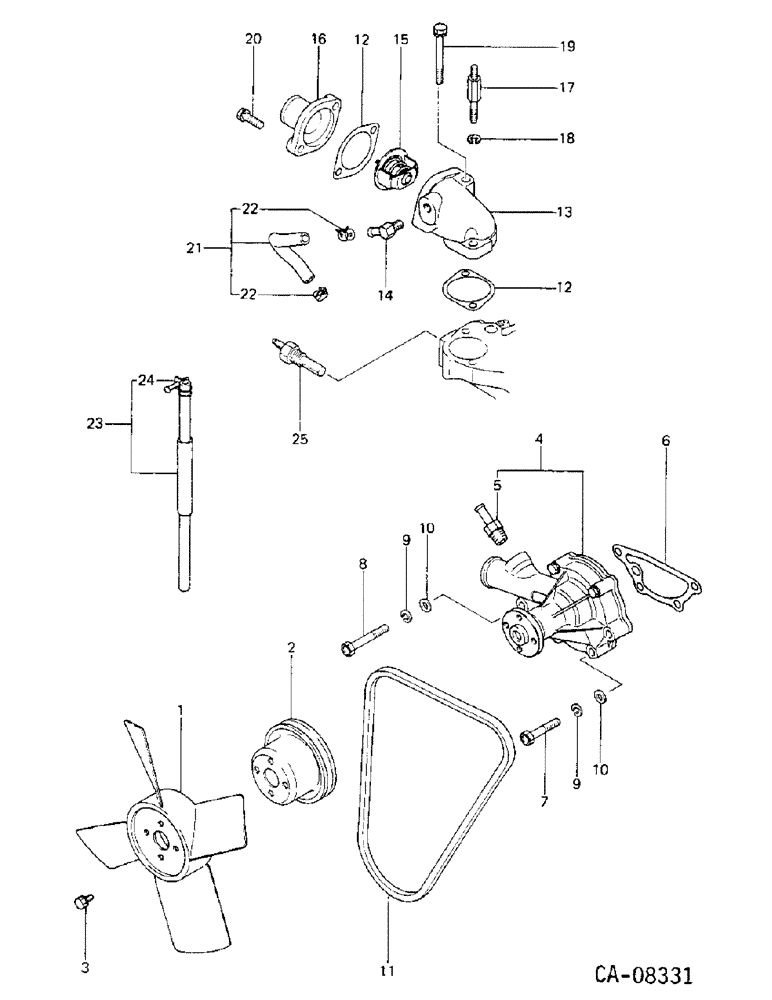

Запчасти Case IH 234 (12-28) - POWER, FAN, THERMOSTAT, HOUSING AND WATER PUMP, 234 TRACTORS Power

1

1275228C1

FAN

replaces 1273083C1

1шт.

2

1273084C1

PULLEY

fan

1шт.

3

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

4шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

4шт.

4

1273085C91

PUMP

ASSY, water

1шт.

1273085C91R

REMAN-WATER PUMP

234

1шт.

1273085C91C

CORE-WATER PUMP

Return Number

1шт.

5

1273096C1

FITTING

hose, nipple

1шт.

6

1273086C1

GASKET

water pump

1шт.

7

934299R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

M8 x 45 class 8.8

3шт.

8

30245R1

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

M8 x 60 class 8.8

1шт.

9

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

10

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6mm

4шт.

11

676622R1

BELT,37.00" L

Fan, Replaces 1273087C1 37.00" L

1шт.

12

1273088C1

GASKET

2шт.

13

1273089C1

ELBOW UNION

ELBOW, thermostat, fitting

1шт.

14

1273090C1

ELBOW UNION

ELBOW, joint

1шт.

15

1273091C1

THERMOSTAT

1шт.

16

1273092C1

FITTING

water outlet

1шт.

17

1273100C2

STUD

outlet fitting

1шт.

18

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

19

7120024

BOLT

M8 x 70mm class 8.8

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

20

30004R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

M8 x 30 PHC class 10.9

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

21

HOSE, water bypass, use 5.90 in./150mm from bulk roll marked 414365C1

1шт.

22

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP, no. 8 type E spring wire hose

2шт.

23

HOSE, water drain, use 13 in./330mm from bulk roll marked 382997C1

1шт.

24

872436R1

HOSE CLAMP,#6, 3/8", Spring

CLAMP, no. 6 type E spring wire hose

1шт.

25

1273102C1

SWITCH

ASSY, replaces 1273095C1

1шт.
