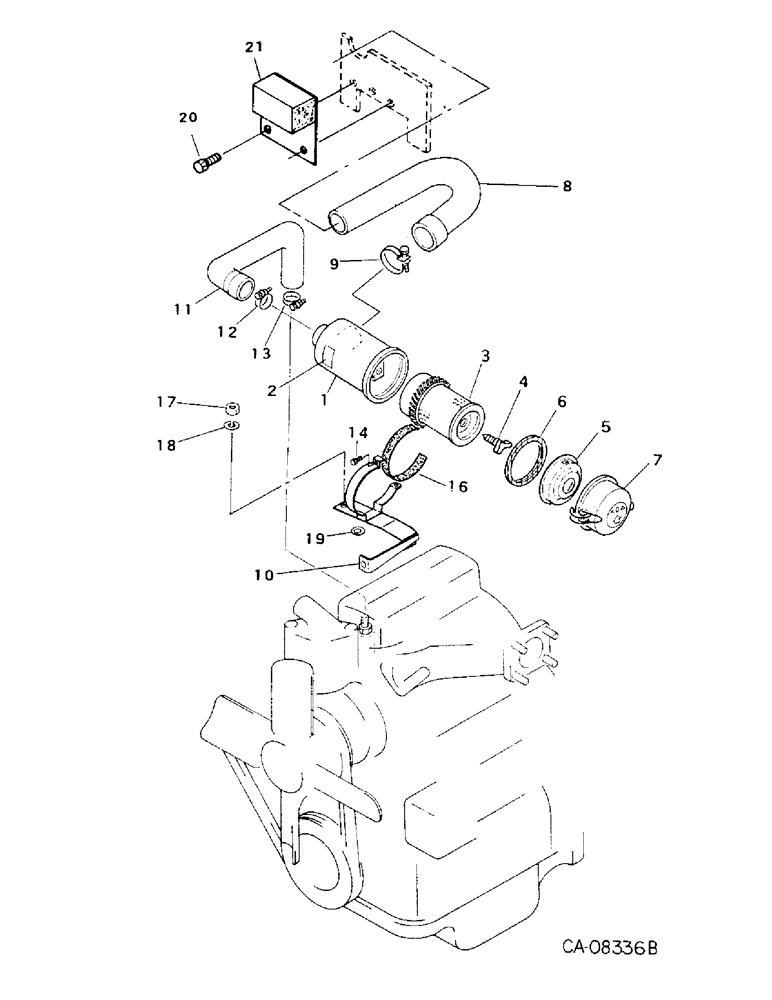

Запчасти Case IH 234 (12-01) - POWER, AIR CLEANER AND CONNECTIONS, 234 Power

1269606C91

CLEANER ASSY.

AIR CLEANER ASSY, includes ref nos. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, not serviced separately

1шт.

2

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, not serviced separately

1шт.

3

1269652C1

FILTER, ELEMENT

ELEMENT

1шт.

4

1269653C1

BOLT

BOLT

1шт.

5

1269654C1

COVER ASSY

COVER

1шт.

6

1269655C1

SEAL

SEAL

1шт.

7

1269656C1

COVER ASSY

COVER

1шт.

8

1275117C1

INTAKE AIR HOSE,40.00 mm ID, 44.00 mm ID x 388.00 mm

HOSE, air

1шт.

9

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, no. 32 shoe type F hose

1шт.

10

1288038C1

SUPPORT

air cleaner (bracket), replaces support, 1275118C1 and support clamp, 1269660C1 by also ordering strip, 1269661C2

1шт.

11

1269659C1

HOSE,44.00 mm ID x 236.50 mm

- Air 44.00 mm ID x 236.50 mm

1шт.

12

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, no. 32 shoe type F hose

1шт.

13

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, no. 32 shoe type F hose

1шт.

14

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

M8 x 30 pln class 8.8

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

15

(Not used this application)

1шт.

16

1269661C2

STRIP

rubber

1шт.

17

30167R1

NUT,M8, Cl 10

M8 PHC class 10

1шт.

18

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

19

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

1шт.

20

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

30167R1

NUT,M8, Cl 10

M8 PHC class 10

2шт.

21

1275193C1

COVER

air intake

1шт.
