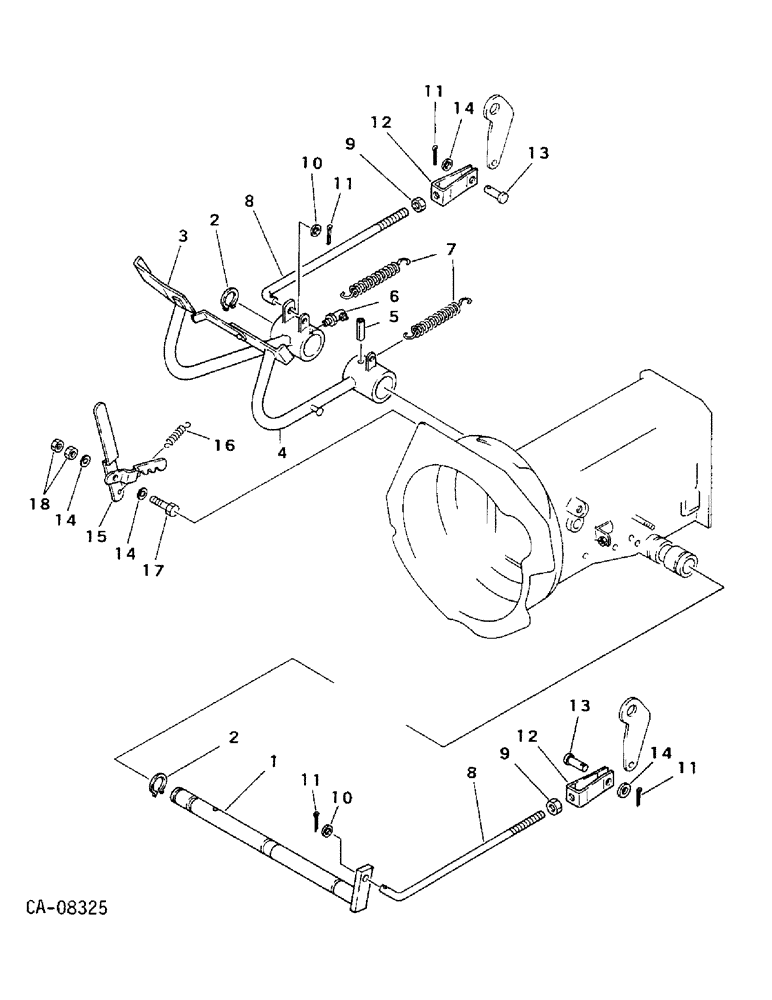

Запчасти Case IH 234 (04-03) - BRAKES, BRAKE CONTROLS, 234 (5.1) - BRAKES

1

1269809C1

SHAFT HOUSING

SHAFT

1шт.

2

933082R1

SNAP RING,M32, Ext

RING, 29.18 mm ext ret

2шт.

3

1275125C1

PEDAL

RH brake

1шт.

4

1269811C1

PEDAL

LH brake

1шт.

5

30332R1

LOCK PIN,M8 x 40 Slotted

PIN, 8 x 40 mm pln slt spr

1шт.

6

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF short 65D lub

1шт.

7

1269807C1

VALVE SPRING

SPRING

2шт.

8

1269812C1

ROD

2шт.

9

825-11410

NUT,M10 x 1.25, Cl 8

2шт.

10

30282R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm

2шт.

11

932952R1

COTTER PIN,M2 x 20

PIN, 2 x 20 mm pln cot.

4шт.

12

1269813C1

YOKE

2шт.

13

30569R1

CLEVIS PIN,M8 x 25

PIN, 8 x 25 mm PHC clevis

2шт.

14

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

4шт.

15

1275466C1

LEVER

- replaces 1269814C1

1шт.

16

1269815C1

VALVE SPRING

SPRING

1шт.

17

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 35 class 8.8

1шт.

18

30167R1

NUT,M8, Cl 10

M8 PHC class 10

2шт.
