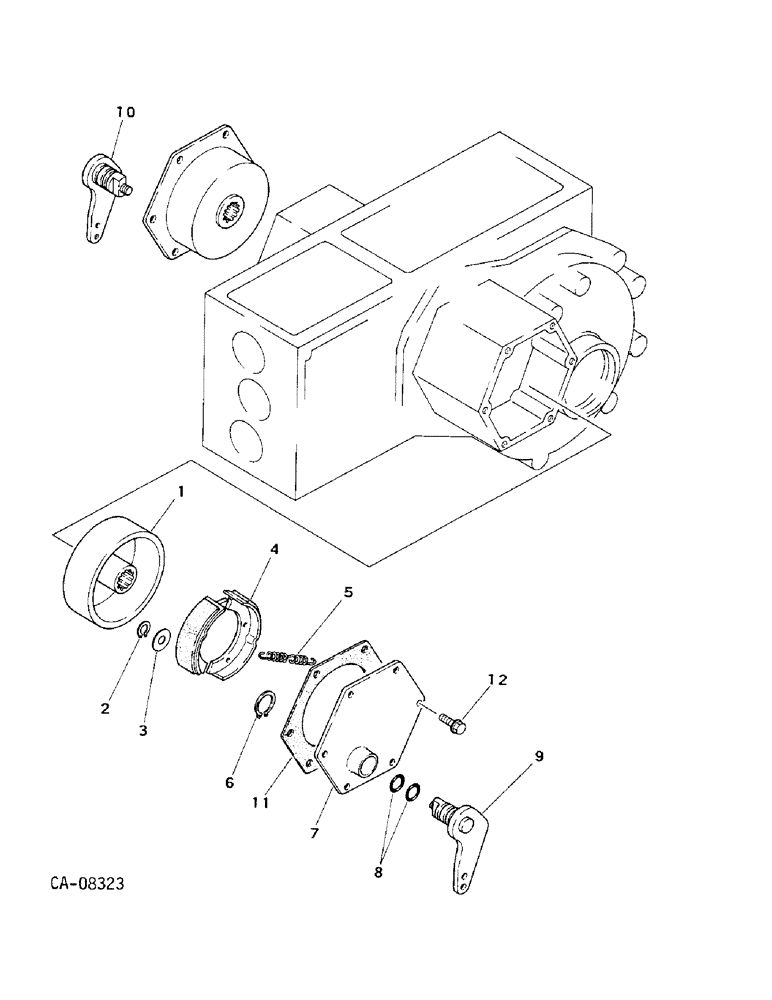

Запчасти Case IH 234 (04-01) - BRAKES, MASTER BRAKES, 234 (5.1) - BRAKES

1

1271772C1

DRUM HUB

DRUM, brake

2шт.

2

1271770C1

RING

retaining

2шт.

3

1269559C1

WASHER

stop plate

2шт.

4

1269560C1

SHOE (ASSY)

SHOE, brake

4шт.

5

1269561C1

VALVE SPRING

SPRING, return

4шт.

6

933105R1

SNAP RING,M22, Ext

RING, 20.08 mm ext ret

2шт.

7

1269565C1

PLATE ASSY.

PLATE, torque

2шт.

8

1269871C1

O-RING,17.8mm ID x 2.4mm Width

4шт.

9

1273422C1

ARM

LH cam shaft

1шт.

10

1269563C1

ARM

RH cam shaft

1шт.

11

1269564C1

GASKET

2шт.

12

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

12шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

12шт.
