(10-23[1]) - HYDRAULICS, HYDRAULIC ADAPTER PACKAGE, 234 TRACTORS

Запчасти Case IH 234 (10-23[1]) - HYDRAULICS, HYDRAULIC ADAPTER PACKAGE, 234 TRACTORS (07) - HYDRAULICS

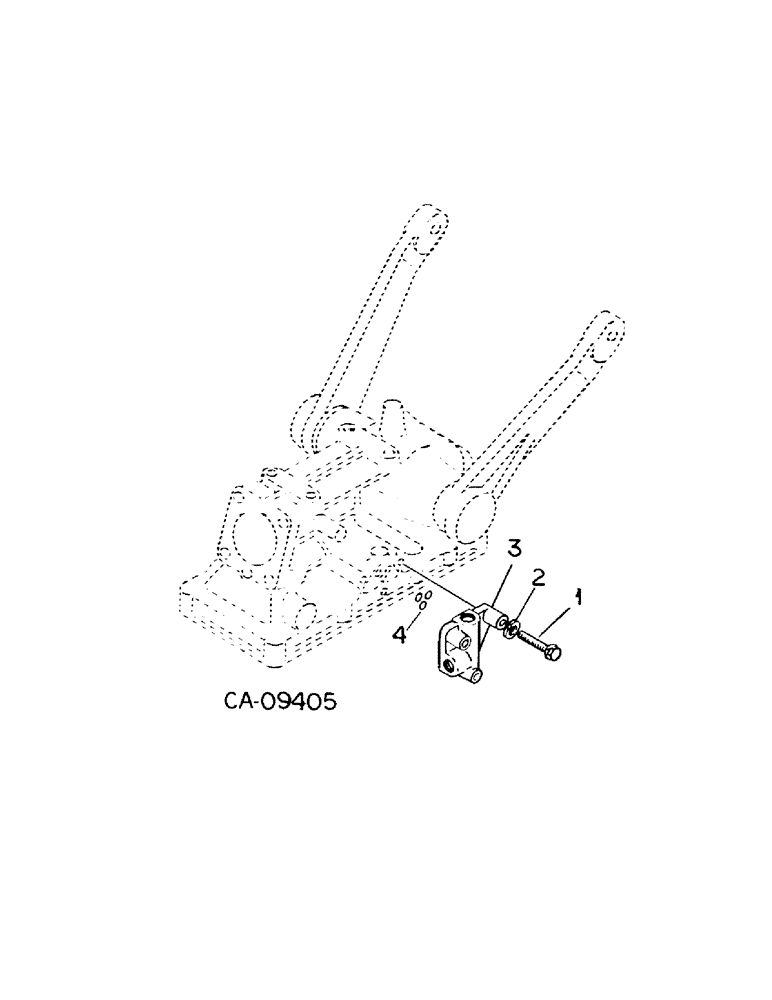

Схема запчастей Case IH 234 - (10-23[1]) - HYDRAULICS, HYDRAULIC ADAPTER PACKAGE, 234 TRACTORS (07) - HYDRAULICS
1
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1288348C91

STRIPPER PACKAGE

PACKAGE, hydraulic adapter, consists of the following parts

1шт.

1

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

M8 x 50 class 8.8

3шт.

2

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

3

1288103C1

ADAPTER

(NSS)

1шт.

4

1282749C1

O-RING

O-RING, size 12, instructions (NSS)

3шт.
