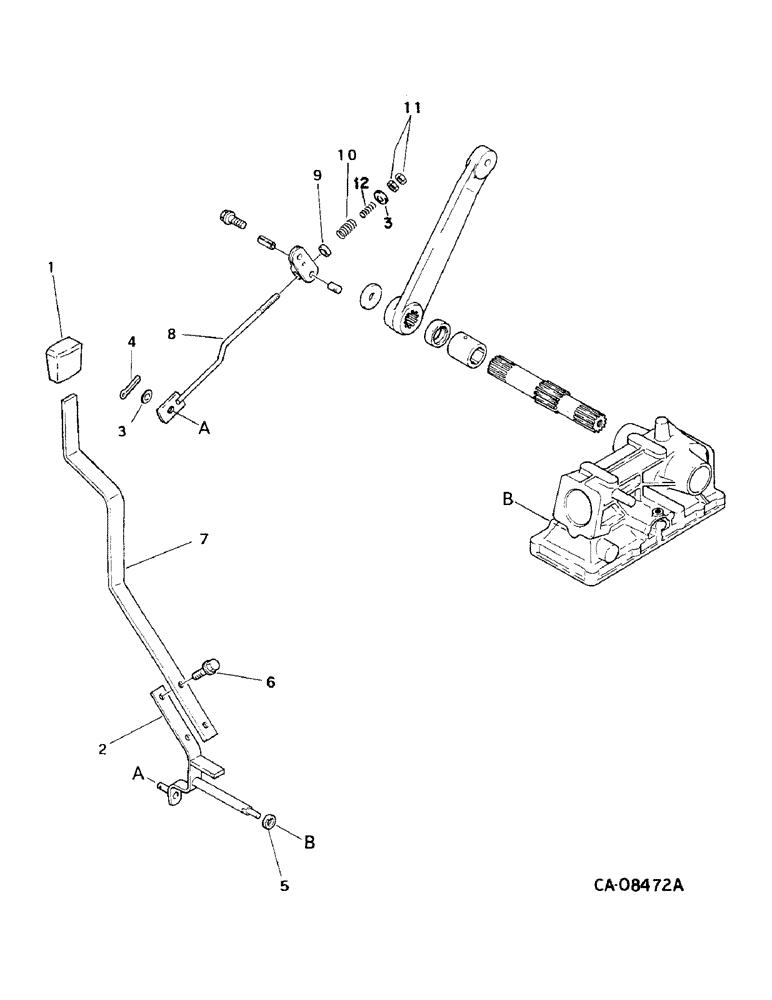

Запчасти Case IH 234 (10-15) - HYDRAULICS, HYDRAULIC CONTROLS, 234 WITH HYDROSTATIC TRANSMISSION (07) - HYDRAULICS

1

1273379C1

KNOB

1шт.

2

1282570C1

LEVER

control

1шт.

3

934948R1

WASHER,M6

6.4 x 12.5 x 1.6 mm

2шт.

4

934788R1

COTTER PIN,M2 x 16

PIN, 2 x 16 mm pln cot.

2шт.

5

1273178C1

OIL SEAL

SEAL, oil

1шт.

6

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

7

1271811C2

SUPPORT

LEVER, support

1шт.

8

1282540C1

ROD

1шт.

9

1271813C1

WASHER

collar

1шт.

10

1273645C1

VALVE SPRING

SPRING

1шт.

11

30281R1

NUT,M6, Cl 10

M6 class 10

2шт.

12

1271733C1

VALVE SPRING

SPRING, serial no. 008363 and above

1шт.
