(39.100.090) - VAR - 439055006 - SUBFRAME MOUNTING PARTS

Запчасти Case IH BMX172H (39.100.090) - VAR - 439055006 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING

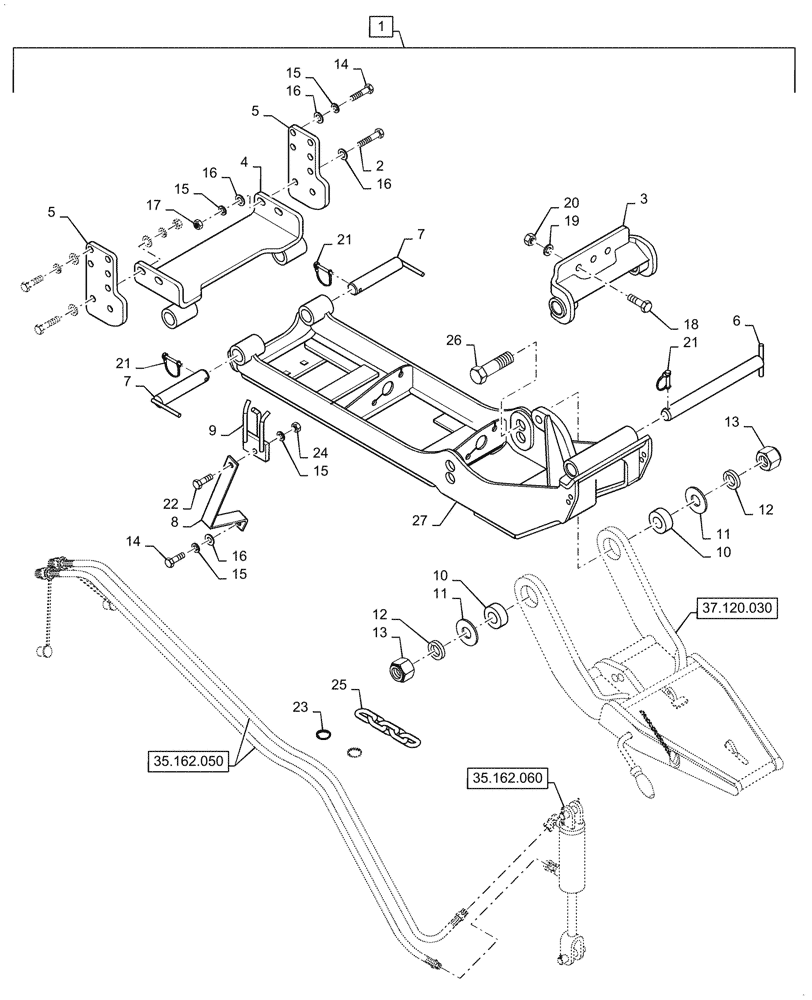

Схема запчастей Case IH BMX172H - (39.100.090) - VAR - 439055006 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING
37.120.030
23
7
12
16
25
26
2
13
4
14
13
9
16
5
11
22
16
15
24
15
1
21
3
16
11
5
10
14
12
15
21
10
8
6
7
17
20
27
18
15
19
21
35.162.050
35.162.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe Assy, Incl 2 - 27, Order Through Wholegoods 439055006

1шт.

2

BER0200140

BOLT

M14 x 2 x 50mm L, Gr 10.9

4шт.

3

BER669625

BRACKET, SUPPORTING

Front

1шт.

4

BER670378

SUPPORT

Rear

1шт.

5

BER670379

BRACKET

Rear

2шт.

Used On Applications W/O Loader

1шт.

6

BER668786

PIN

1-3/16" OD x 12-3/8" L

1шт.

7

BER669634

PIN

L

2шт.

8

BER667027

BRACKET, SUPPORTING

Hose

1шт.

9

BER666925

SUPPORT

Hose

1шт.

Prong Style

1шт.

10

BER669635

BUSHING

Hitch Pivot, 1-9/64" ID x 2-1/4" OD

2шт.

11

BER1400014

WASHER

1-1/4" ID

2шт.

12

BER1200023

WASHER

Lock, 1-1/8" ID

2шт.

13

BER1000023

NUT

Lock, 1-1/8" ID

2шт.

14

BER0200080

BOLT

M14 x 2 x 40mm L

11шт.

15

BER1200014

WASHER

Lock, 14mm ID

16шт.

16

BER1400024

WASHER

14mm ID

19шт.

17

BER0900055

NUT

M14 x 2

4шт.

18

BER0100094

BOLT

5/8" OD x 1-3/4" L

2шт.

19

BER1200007

WASHER

Lock, 5/8" ID

2шт.

20

BER0900007

NUT

5/8"

2шт.

21

BER1900006

PIN, SPLIT (COTTER)

1/4" OD x 1-3/4" L

3шт.

22

BER0100070

BOLT

1/2" OD x 1-1/2" L, Gr 5

1шт.

23

BER1900011

COTTER PIN

1-1/4" L

2шт.

24

BER1000011

LOCK NUT

1/2"

1шт.

25

BER2300022

CHAIN

3/8" OD x 8" L, Gr 30

1шт.

26

BER0100222

BOLT

1-1/8" OD x 4" L

2шт.

27

BER670375

FRAME

Subframe

1шт.
