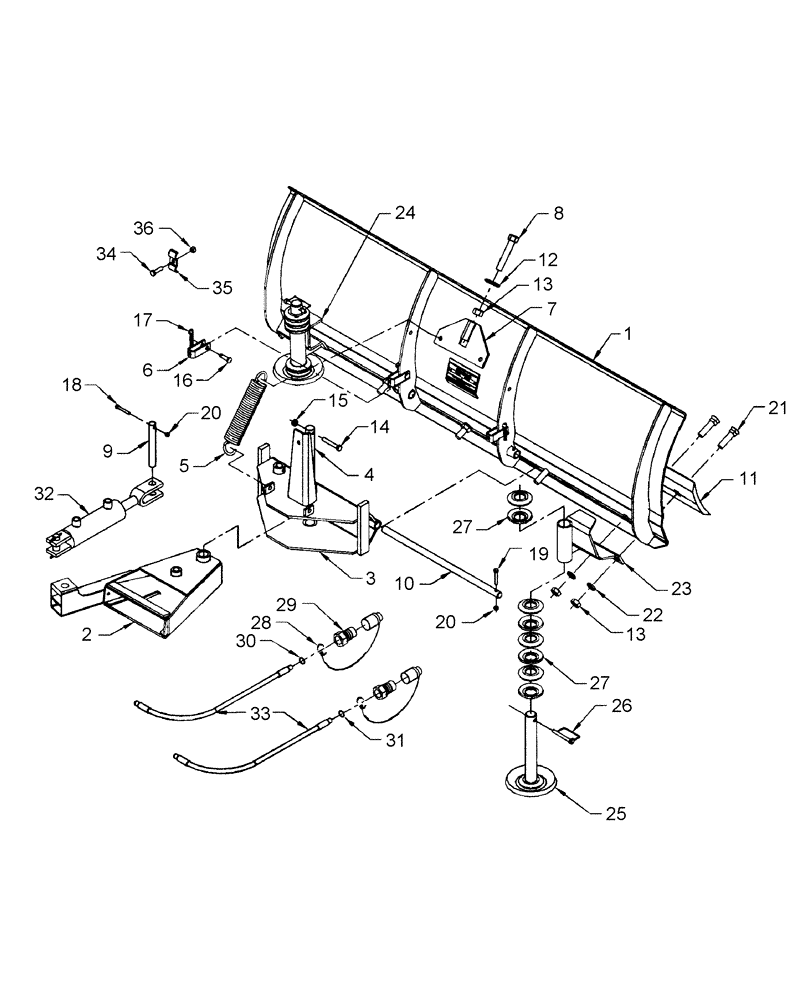

Запчасти Case IH BMX160 (101) - 60" FRONT BLADE

1

CSE666767

MOLDBOARD

1шт.

2

BER665181

HITCH

QUICK, Female

1шт.

3

CSE666848

HITCH

Adjustible

1шт.

4

BER665189

PIVOT PIN

1шт.

5

BER31021

SPRING

2шт.

6

BER657488

SPARE PART

Spring, Trip

2шт.

7

BER665184

IDLER

1шт.

8

BER665002

BOLT

Hex, 5/8" x 3 -1/2"

1шт.

9

BER665196

PIN

3/4" dia

1шт.

10

BER657871

PIN

3/4" x 17 -3/4"L

1шт.

11

BER659761

CUTTING EDGE

1шт.

12

PL

PROCURE LOCALLY

Washer, Flat, 11/16"

1шт.

13

PL

PROCURE LOCALLY

Nut, Hex, 5/8"

8шт.

14

PL

PROCURE LOCALLY

Bolt, Hex, 1/4' x 2 -1/4"

1шт.

15

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1/4"

2шт.

16

BER657489

PIN

3/8" x 1 -1/4"

2шт.

17

BER1800004

COTTER PIN

3mm x 65mm

2шт.

18

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 1 -3/4"

1шт.

19

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 1 -1/2"

1шт.

20

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1/4"

1шт.

21

BER0400008

BOLT

5/8" x 2"

7шт.

22

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

7шт.

23

BER665177

BRACKET

Skid Shoe, RH

1шт.

24

BER665176

BRACKET

Skid Shoe, LH

1шт.

25

BER664564

SHOE

Skid

2шт.

26

BER1900001

LINCH PIN

5/16"

2шт.

27

BER659393

WASHER

16шт.

28

BER658397

DUST CAP

2шт.

29

BER658118

QUICK MALE COUPLING

3/8"

2шт.

30

BER658206

RING

Identification - Yellow

2шт.

31

BER658209

RING

Identification - Green

2шт.

32

BER665433

HYDRAULIC CYLINDER,Double Acting, 127mm Stroke

2" x 5"

1шт.

33

BER659203

HOSE

1/4" x 55"

2шт.

34

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1 -1/4"

1шт.

35

BER666583

HOSE CLAMP

1шт.

36

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 3/8"

1шт.

37

BER665434

SEAL KIT

1шт.
