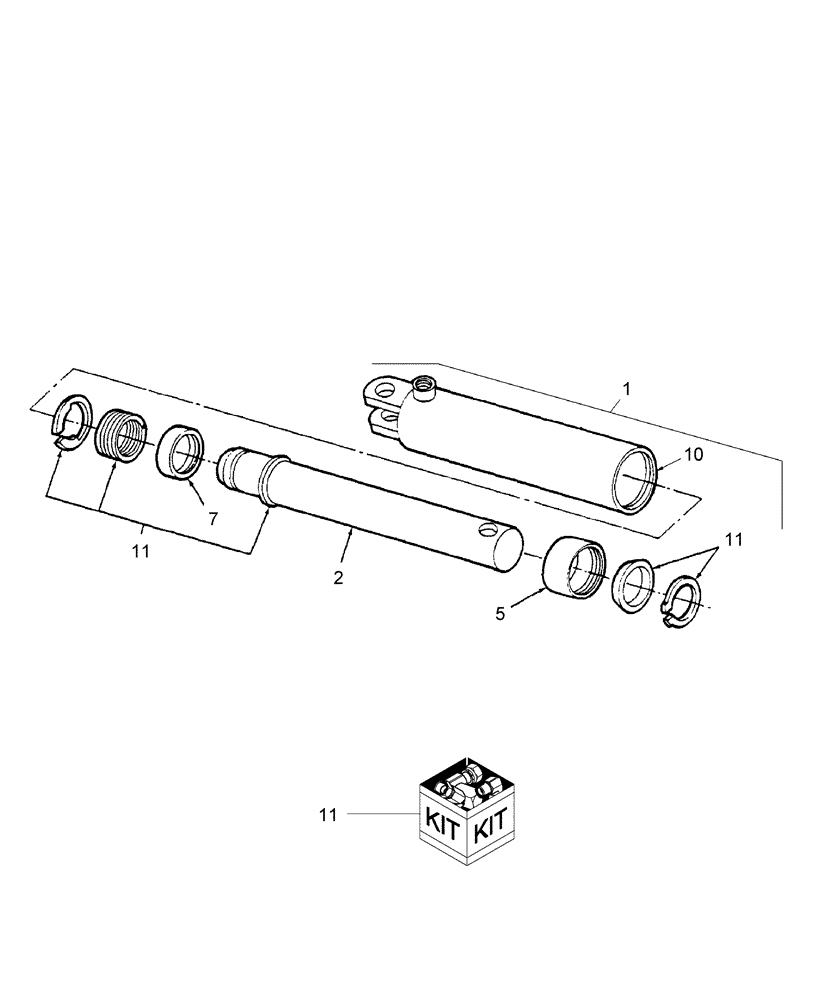

Запчасти Case IH BM184 (113) - HYDRAULIC CYLINDER, ANGLE

1

NSS

NOT SOLD SEPARAT

Angle, AI 2"

1шт.

2

SML27149

ROD,38.1mm OD

1шт.

3

NSS

NOT SOLD SEPARAT

RING, Retaining

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, Rod

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND, Cylinder

1шт.

SML27023

1шт.

6

NSS

NOT SOLD SEPARAT

RING, Retaining

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

NSS

NOT SOLD SEPARAT

V-RING, Packing

2шт.

9

NSS

NOT SOLD SEPARAT

RING, Retaining

1шт.

10

SML27146

TUBE

Cylinder, 2" Dia.

1шт.

11

SML28682

SEAL KIT

SEALS

1шт.
