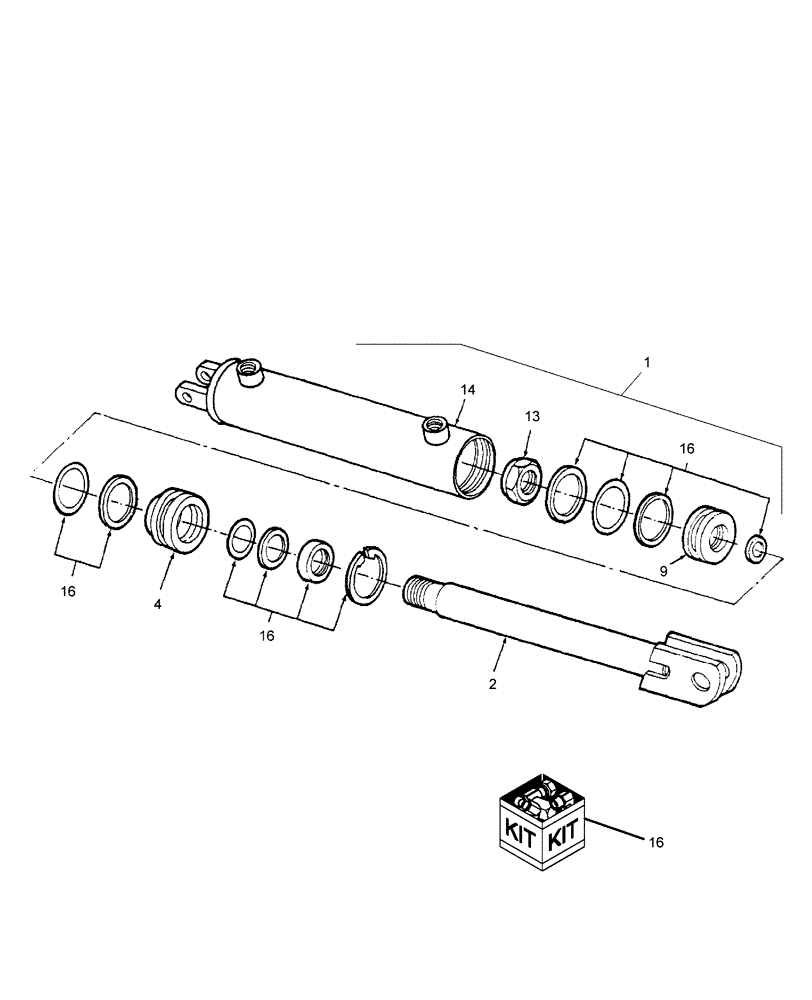

Запчасти Case IH BM184 (112) - HYDRAULIC CYLINDER, LIFT

1

SML48955

LIFT CYLINDER

1шт.

2

SML27117

ROD

Piston, 1-1/8" Dia.

1шт.

3

NSS

NOT SOLD SEPARAT

1шт.

4

SML27110

CYLINDER

Head

1шт.

5

NSS

NOT SOLD SEPARAT

HEAD, Backup Seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING, Head

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, Rod

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

9

SML27000

PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

RING, Backup, Piston

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING, Piston

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING, Rod

1шт.

13

PL

PROCURE LOCALLY

NUT, LOCK

1шт.

14

SML48954

CYLINDER

1шт.

15

NSS

NOT SOLD SEPARAT

RING, RETAINING, Head

1шт.

16

SML28733

SEAL KIT

Seal, Cylinder Repair

1шт.
