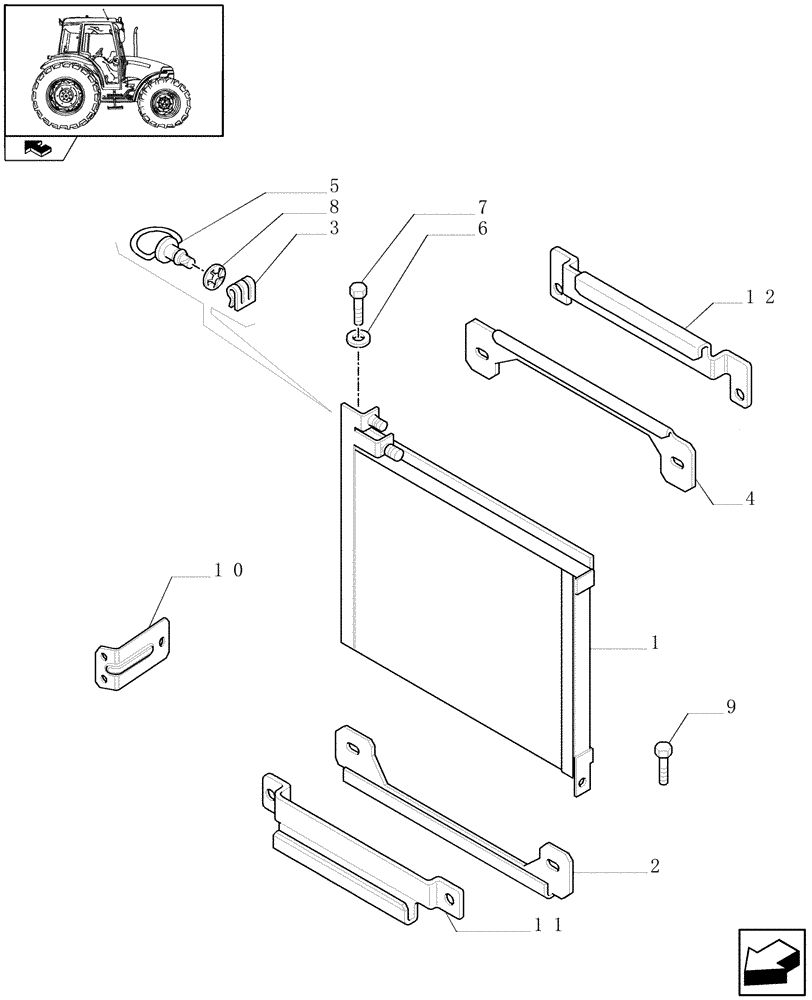

Запчасти Case IH FARMALL 60 (0.88.0[02]) - AIR CONDITIONING UNIT - CONDENSER - C6795 (VAR.330641-336641) (01) - ENGINE

1

87541744

CONDENSER

1шт.

2

87679477

SUPPORT

Botton, Serial Range: -C6411

1шт.

3

82004582

CLIP,Square, 25mm

1шт.

4

87679482

SUPPORT

Top, Serial Range: -C6411

1шт.

5

87614935

STUD,6mm OD

, Serial Range: -C6411

1шт.

5

82005454

FASTENER

, Start Serial: D6411

1шт.

6

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

7

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

4шт.

8

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

9

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

10

87657556

PLATE

1шт.

11

84217232

SUPPORT

Botton, Start Serial: D6411

1шт.

12

84217235

SUPPORT

Top, Start Serial: D6411

1шт.
