Запчасти Case IH FARMALL 60 (1.92.85/10) - DELUXE SEAT WITH AIR SUSPENSION, RETRACTABLE BELTS AND ARMREST - W/CAB (VAR.333850-334850) (10) - OPERATORS PLATFORM/CAB

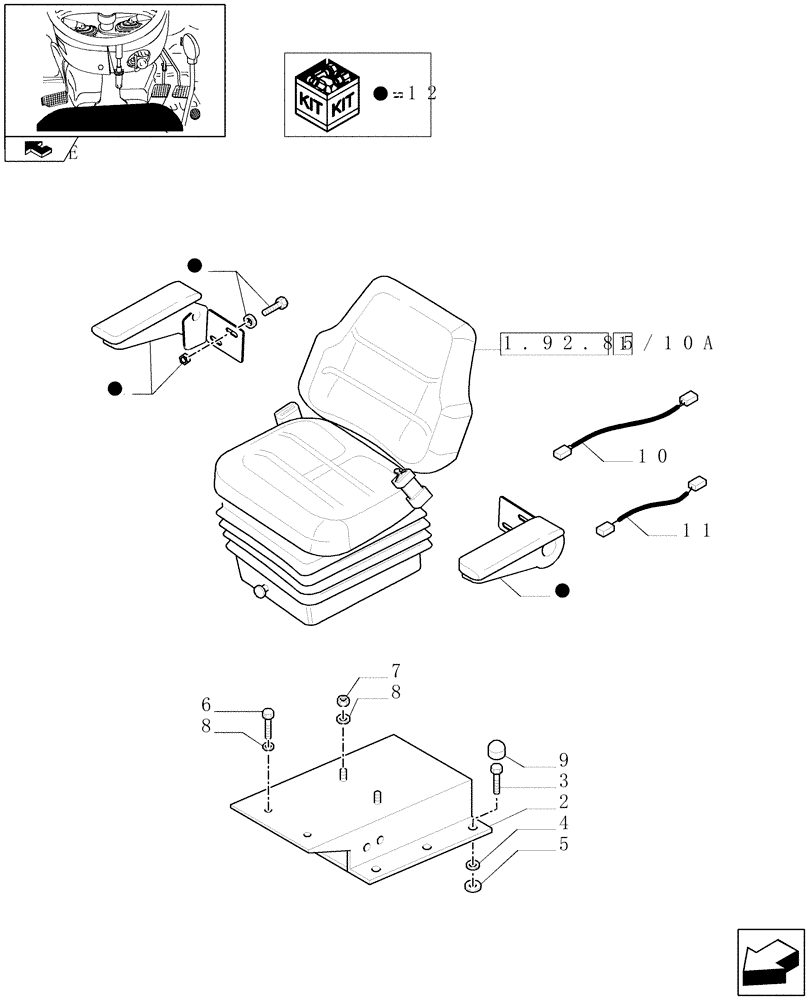

Схема запчастей Case IH FARMALL 60 - (1.92.85/10) - DELUXE SEAT WITH AIR SUSPENSION, RETRACTABLE BELTS AND ARMREST - W/CAB (VAR.333850-334850) (10) - OPERATORS PLATFORM/CAB
8
6
8
home
2
12
7
11
12
12
5
12
1
10
1.92.85/10a
9
12
3
4

Артикул

Название

Примечание

Количество

1

84164869

DRIVER SEAT

ASSY

1шт.

Fabric Case with Increased Seat Back and Cushion

1шт.

2

84273081

SUPPORT

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

6шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

6

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.

8

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

9

5089481

CAP,17mm OD

6шт.

10

87703924

ELECTRIC CABLE

Seat Connection

1шт.

11

87486267

ELECTRIC CABLE

Sear Switch Connection

1шт.

Valid only for VAR.333850

1шт.

12

47127065

KIT

Armrest

1шт.

Выбрано товаров: 14
