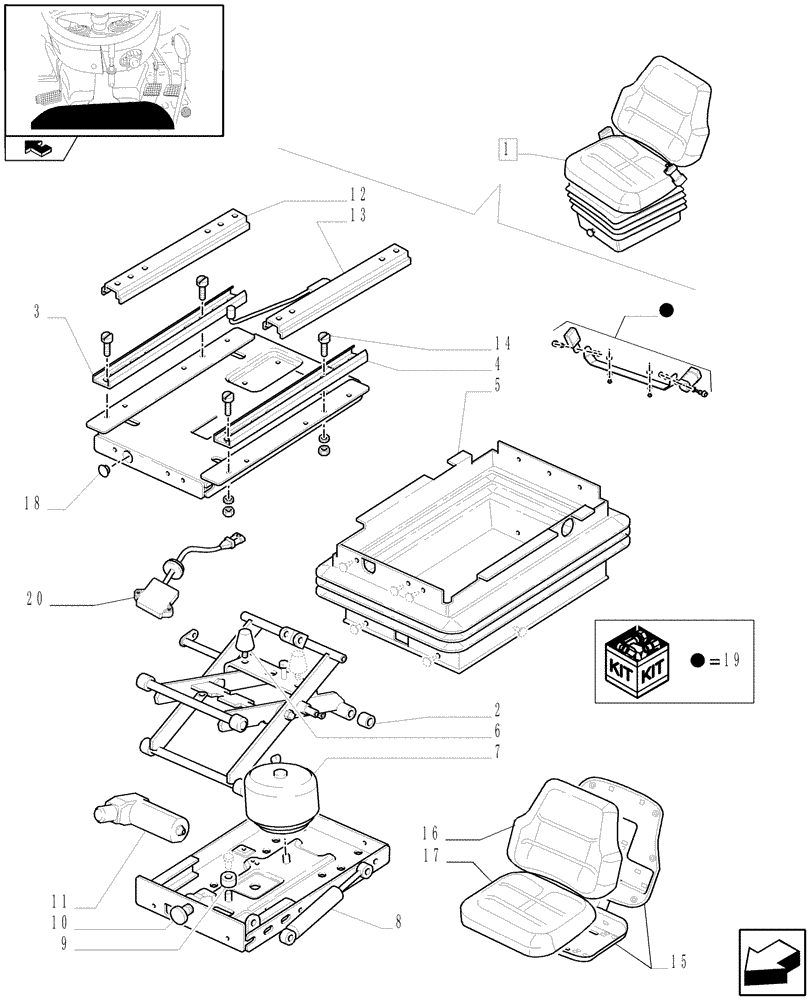

Запчасти Case IH FARMALL 60 (1.92.85/08A) - DELUXE SEAT WITH AIR SUSPENSION AND RETRACTABLE BELTS - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

1

87730600

DRIVER SEAT

ASSY

1шт.

Fabric Zora with Increased Seat Back and Cushion

1шт.

2

47127024

BUSHING

4шт.

3

5197885

GUIDE

RH

1шт.

4

5197884

GUIDE

LH

1шт.

5

5197883

BELLOWS

1шт.

6

5197882

RUBBER PAD

2шт.

7

5197881

SPRING

1шт.

8

5197878

SHOCK ABSORBER

1шт.

9

5197877

SPEED GOVERNOR

1шт.

10

5197880

PUSH BUTTON

1шт.

11

47127025

AIR COMPRESSOR

Compressor

1шт.

Includes Compressor, Air Hose and Electrical Leads.

1шт.

12

47127060

GUIDE

1шт.

13

47127061

GUIDE

1шт.

14

5197858

SCREW,M8 x 20mm, Cl 8.8

4шт.

15

47127057

PLATE

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.

18

47136906

PLUG

1шт.

19

47135573

KIT

1шт.

20

87552428

SWITCH

1шт.
