Запчасти Case IH FARMALL 60 (1.92.85/08) - DELUXE SEAT WITH AIR SUSPENSION AND RETRACTABLE BELTS - W/CAB (VAR.335850-336850) (10) - OPERATORS PLATFORM/CAB

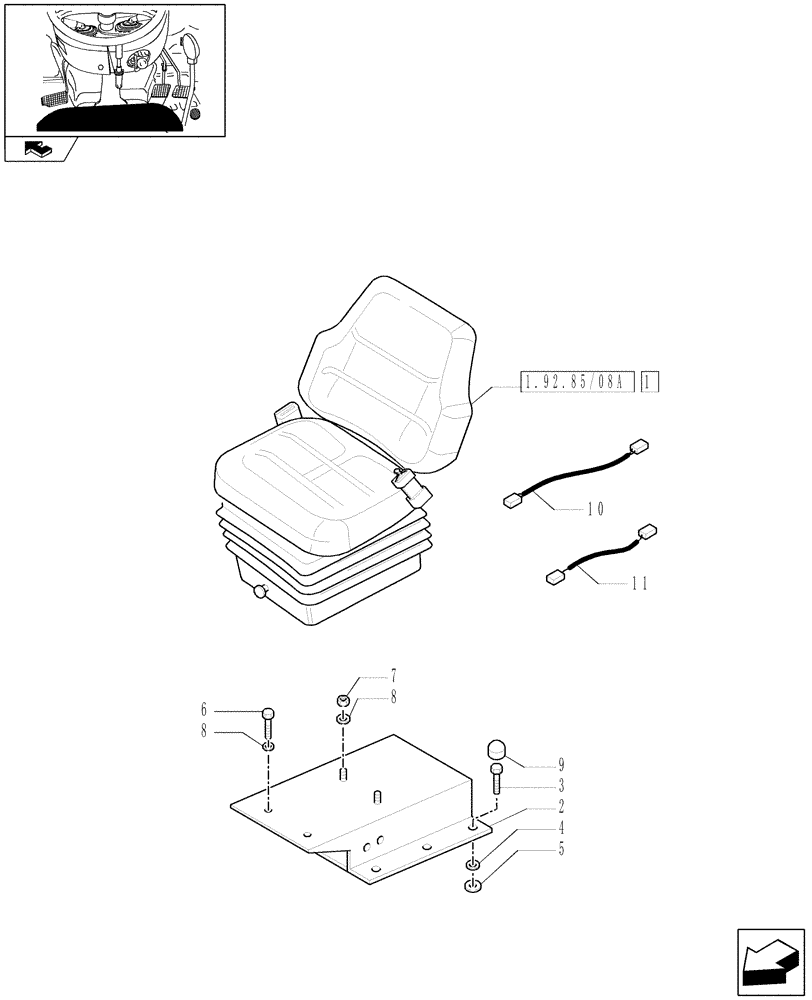

Схема запчастей Case IH FARMALL 60 - (1.92.85/08) - DELUXE SEAT WITH AIR SUSPENSION AND RETRACTABLE BELTS - W/CAB (VAR.335850-336850) (10) - OPERATORS PLATFORM/CAB
9
1
2
8
4
10
5
6
3
1.92.85/08a
11
7
8
home

Артикул

Название

Примечание

Количество

1

87751929

DRIVER SEAT

ASSY

1шт.

Fabric Zora with Increased Seat Back and Cushion

1шт.

2

87693002

SUPPORT

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

6шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

6

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

8

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

9

5089481

CAP,17mm OD

6шт.

10

87703924

ELECTRIC CABLE

Seat Connection

1шт.

11

87486267

ELECTRIC CABLE

Sear Switch Connection

1шт.

Выбрано товаров: 12
