Запчасти Case IH FARMALL 60 (1.92.85/06) - DELUXE SEAT WITH RETRACTABLE BELTS - W/CAB (VAR.336191) (10) - OPERATORS PLATFORM/CAB

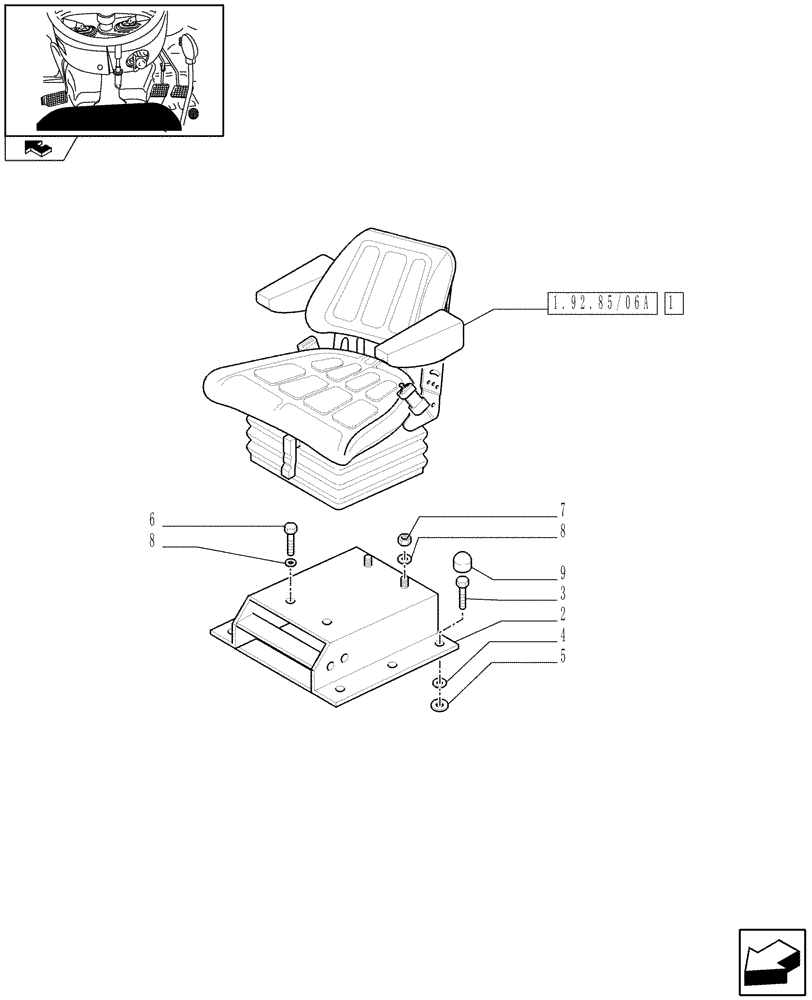

Схема запчастей Case IH FARMALL 60 - (1.92.85/06) - DELUXE SEAT WITH RETRACTABLE BELTS - W/CAB (VAR.336191) (10) - OPERATORS PLATFORM/CAB
5
home
1.92.85/06a
2
8
4
6
3
9
8
1
7

Артикул

Название

Примечание

Количество

1

5091998

DRIVER SEAT

ASSY

1шт.

2

5093531

SUPPORT

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

6

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.

8

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

9

5089481

CAP,17mm OD

6шт.

Выбрано товаров: 9
