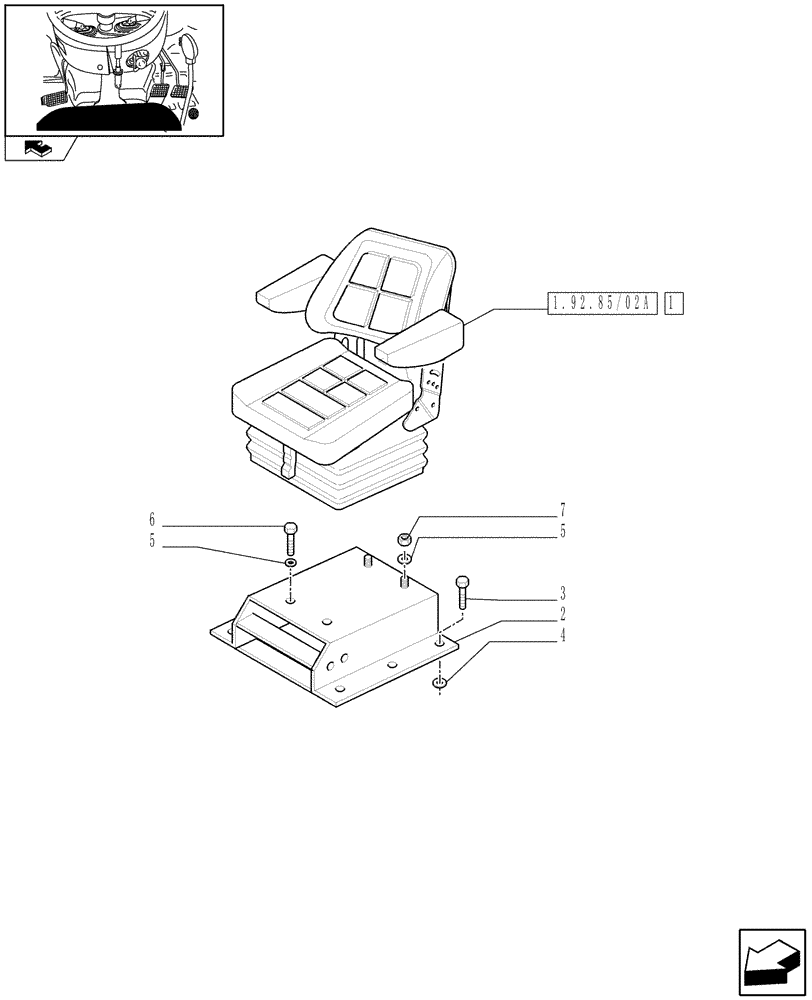

Запчасти Case IH FARMALL 60 (1.92.85/02) - DELUXE SEAT WITH ARM REST - L/CAB (VAR.335190) (10) - OPERATORS PLATFORM/CAB

1

87642769

DRIVER SEAT

ASSY

1шт.

2

5093531

SUPPORT

1шт.

3

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

6шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

M8

6шт.

5

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.
