Запчасти Case IH FARMALL 60 (1.92.63[03]) - POWER STEERING - PUMP AND PIPES (10) - OPERATORS PLATFORM/CAB

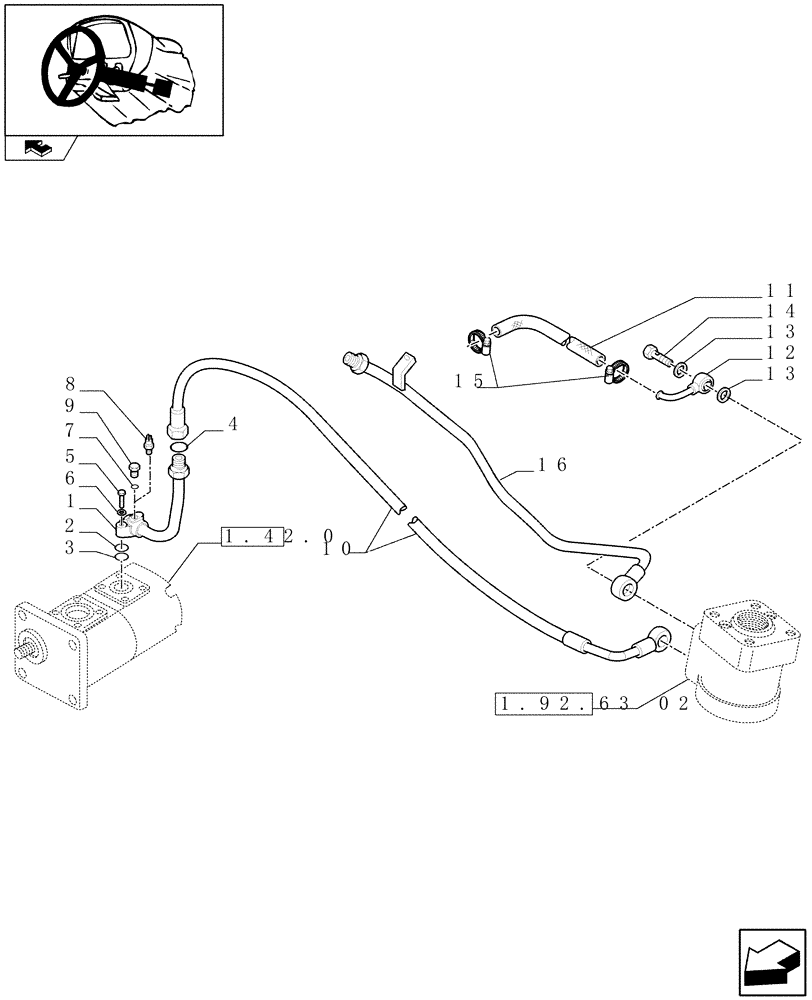

Схема запчастей Case IH FARMALL 60 - (1.92.63[03]) - POWER STEERING - PUMP AND PIPES (10) - OPERATORS PLATFORM/CAB
13
home
1.92.63 02
11
1.42.0
14
13
5
7
6
12
15
2
16
8
9
3
4
10
1

Артикул

Название

Примечание

Количество

1

87487419

PIPE

1шт.

2

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

3

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

6

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

7

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

D=12

1шт.

8

5099414

PRESSURE SWITCH

1шт.

9

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

Less Stering Pressure Indicator, VAR.335930

1шт.

10

87487371

FLEXIBLE HOSE

1шт.

10

87721732

HYDRAULIC HOSE

1шт.

Rear Electrohydraulic Diff. Lock and Electrohydraulic 4WD, Engagement; VAR.330384 (743909)

1шт.

11

87626440

HYDRAULIC HOSE,15.9mm ID x 1800mm L

1шт.

12

5094789

TUBE

1шт.

13

44019496

SEAL,21.2mm ID x 26mm OD x 2mm Thk

21.2 x 26 x 2

4шт.

14

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

15

87557209

CLAMP,16mm - 27mm

D=16-27

2шт.

16

84211673

PIPE

1шт.

Rear Electrohydraulic Diff. Lock and Electrohydraulic 4WD, Engagement; VAR.330384 (743909)

1шт.

Выбрано товаров: 20
