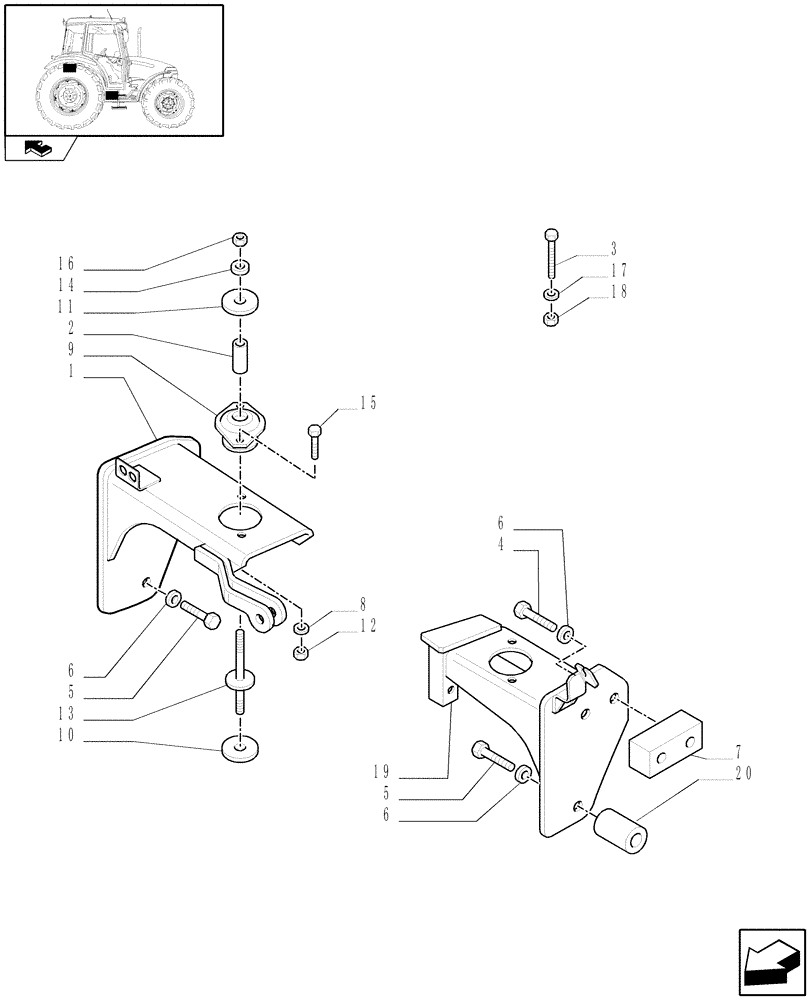

Запчасти Case IH FARMALL 60 (1.87.0/01[01]) - BRACKETS FOR FRONT AUXILIARY EQUIPMENTS - SUPPORT - W/CAB (VAR.335460-335522) (08) - SHEET METAL

1

84145295

SUPPORT

RH

1шт.

2

5132014

SPACER,17mm ID x 24mm OD x 57mm L

2шт.

3

15985031

BOLT,Hex, M18 x 1.5 x 90mm, Cl 10.9

6шт.

4

15981421

SCREW,Hex, M16 x 1.5 x 85mm, Cl 8.8

4шт.

5

11369624

BOLT,Hex, M16 x 1.5 x 110, 8.8

2шт.

6

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

6шт.

7

5092834

SPACER

2шт.

Loader Ready with Spacer, VAR.335460

1шт.

8

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

4шт.

9

5132016

ISOLATOR

2шт.

10

5092190

SPACER,17mm ID x 90mm OD x 8mm L

2шт.

11

5092191

SPACER,17mm ID x 90mm OD x 4mm L

2шт.

12

12164714

NUT,M10 x 1.25, Cl 8

4шт.

13

5089999

STUD

2шт.

14

13580101

WASHER,16.4mm ID x 32mm OD x 4mm Thk

2шт.

15

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

4шт.

16

15504021

NUT,M16 x 1.5

4шт.

17

12601874

SPRING WASHER,19mm ID x 34mm OD x 1.6mm Thk

6шт.

18

12164224

NUT,M18 x 1.5, Cl 10

6шт.

19

87391997

SUPPORT

LH

1шт.

20

87626408

SPACER,17mm ID x 30mm OD x 64.4mm L

3шт.

Loader Ready with Spacer, VAR.335460

1шт.
