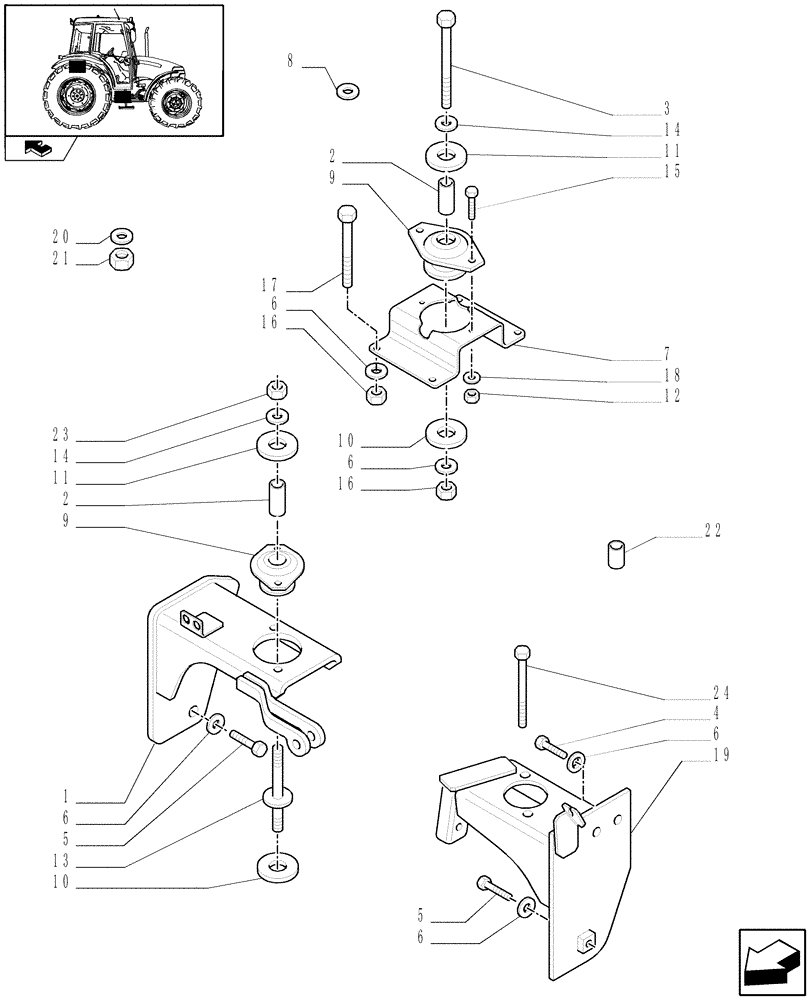

Запчасти Case IH FARMALL 60 (1.87.0[01]) - CAB SUPPORTS (08) - SHEET METAL

1

84145314

SUPPORT

RH

1шт.

2

5132014

SPACER,17mm ID x 24mm OD x 57mm L

6шт.

3

15864324

BOLT,Hex, M16 x 1.5 x 130mm, Cl 8.8

2шт.

4

11376237

BOLT,Hex, M16 x 1.5 x 35mm, Cl 8.8

4шт.

5

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

2шт.

6

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

M16

22шт.

7

5098775

SUPPORT

2шт.

8

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

12шт.

9

5132016

ISOLATOR

2шт.

10

5092190

SPACER,17mm ID x 90mm OD x 8mm L

6шт.

11

5092191

SPACER,17mm ID x 90mm OD x 4mm L

6шт.

12

12164711

NUT,M10 x 1.25, Cl 8

12шт.

13

5089999

STUD

2шт.

14

13580101

WASHER,16.4mm ID x 32mm OD x 4mm Thk

2шт.

15

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

12шт.

16

12164121

NUT,M16 x 1.5, Cl 10

10шт.

17

15985031

BOLT,Hex, M18 x 1.5 x 90mm, Cl 10.9

6шт.

18

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

19

87391993

SUPPORT

LH

1шт.

20

12601874

SPRING WASHER,19mm ID x 34mm OD x 1.6mm Thk

6шт.

21

10721021

NUT,M18 x 1.5, Cl 10

6шт.

22

87626409

SPACER

17 x 30 x 50.4

1шт.

22

87626408

SPACER,17mm ID x 30mm OD x 64.4mm L

17 x 30 x 64.4

1шт.

23

12164121

NUT,M16 x 1.5, Cl 10

4шт.

24

11369624

BOLT,Hex, M16 x 1.5 x 110, 8.8

2шт.
