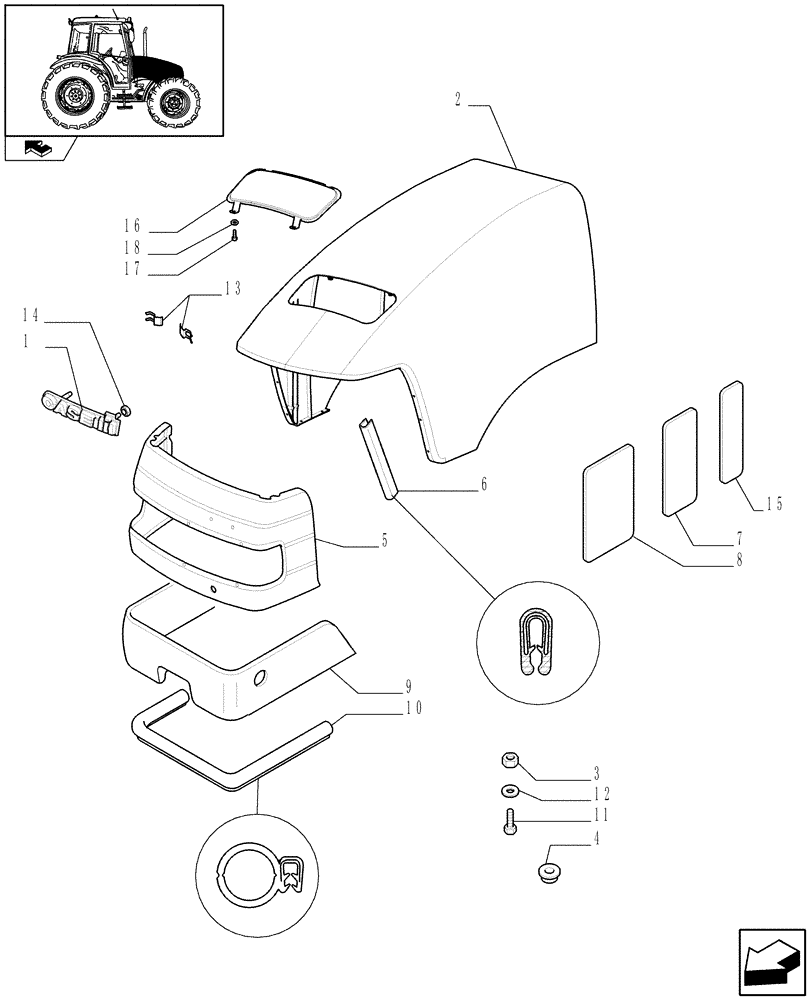

Запчасти Case IH FARMALL 60 (1.83.0[01A]) - HOOD, SIDE PANELS AND INSULATORS - D6520 - C7094 (08) - SHEET METAL

1

87564049

EMBLEM

1шт.

2

84347164

ENGINE HOOD PANEL

1шт.

3

10794014

NUT,M4, Cl 8

8шт.

4

87679075

BUSHING,12.1mm ID x 26mm OD x 6mm L

1шт.

5

84279692

GRILLE

1шт.

6

5093852

RUBBER SEAL,170mm L

170MM

1шт.

6

87496881

SEAL,120mm L

120MM

1шт.

7

84415090

ISOLATOR

390 x 100

1шт.

Valid for 80 Model only

1шт.

8

84415089

ISOLATOR

390 x 205

2шт.

9

5097719

BEZEL

1шт.

10

5092201

RUBBER SEAL,1210mm L

2шт.

11

10444721

BOLT,Hex, M4 x 14mm, Cl 8.8, Full Thd

10шт.

12

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

14шт.

13

47126667

SPRING CLIP

2шт.

14

5138360

RING,4mm ID x 12mm OD x 3mm Thk

2шт.

15

84415091

ISOLATOR

1шт.

16

84313527

GRILLE

1шт.

17

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

18

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.
