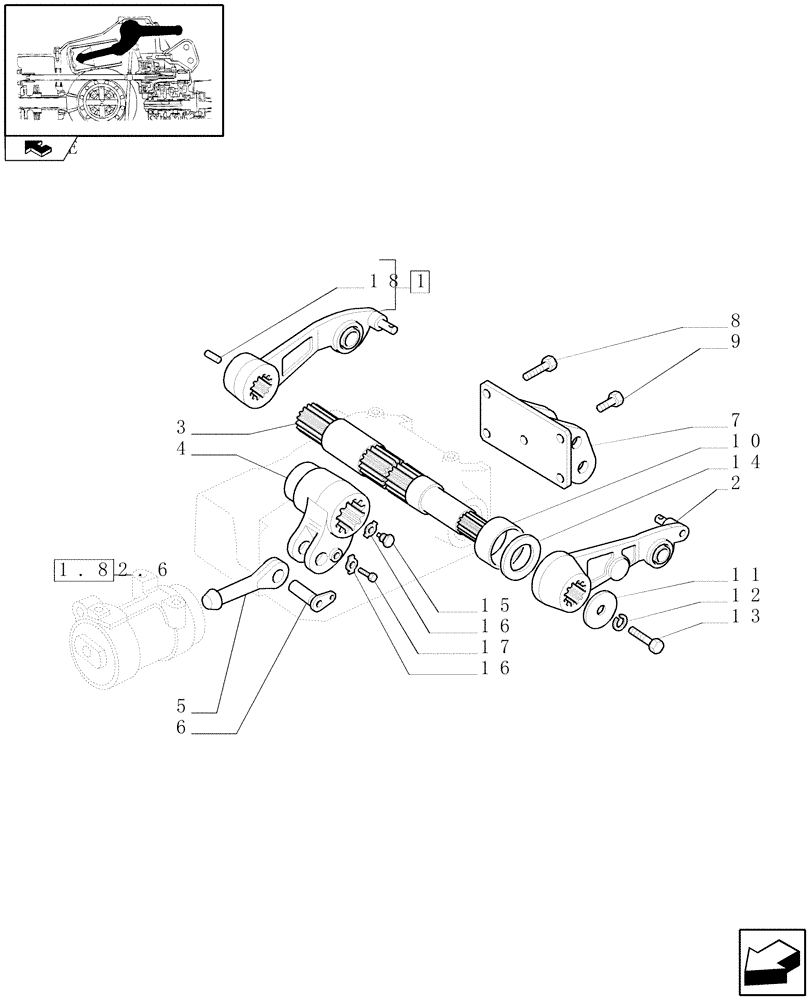

Запчасти Case IH FARMALL 60 (1.82.8/01) - TOW HOOK AND DRAWBAR (PICK-UP) - LIFT ARMS & SUPPORT (VAR.335929) (07) - HYDRAULIC SYSTEM

1

5093995

LIFT ARM

RH

1шт.

2

5093994

LIFT ARM

LH

1шт.

3

87486939

ROCKSHAFT,42T-48T, 488mm L

1шт.

4

5165510

ARM

1шт.

5

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

6

5122356

PIN,30mm OD x 74mm L

1шт.

7

5150842

SUPPORT

1шт.

8

11394331

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

4шт.

9

11408334

BOLT,Hex, M14 x 1.5 x 35, 10.9, Full Thd

1шт.

10

47970741

SEAL

55mm ID x 70mm OD x 7.5mm Thk

2шт.

11

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

12

10572079

LOCK WASHER,M14

2шт.

13

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

14

5111082

SPACER,55mm ID x 90mm OD x 6mm L

2шт.

15

5117190

SET SCREW,M10 x 1.25 x 23mm

1шт.

16

14198810

LOCKING PLATE,M10

2шт.

17

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

18

10335010

DOWEL,M5 x 22

1шт.
