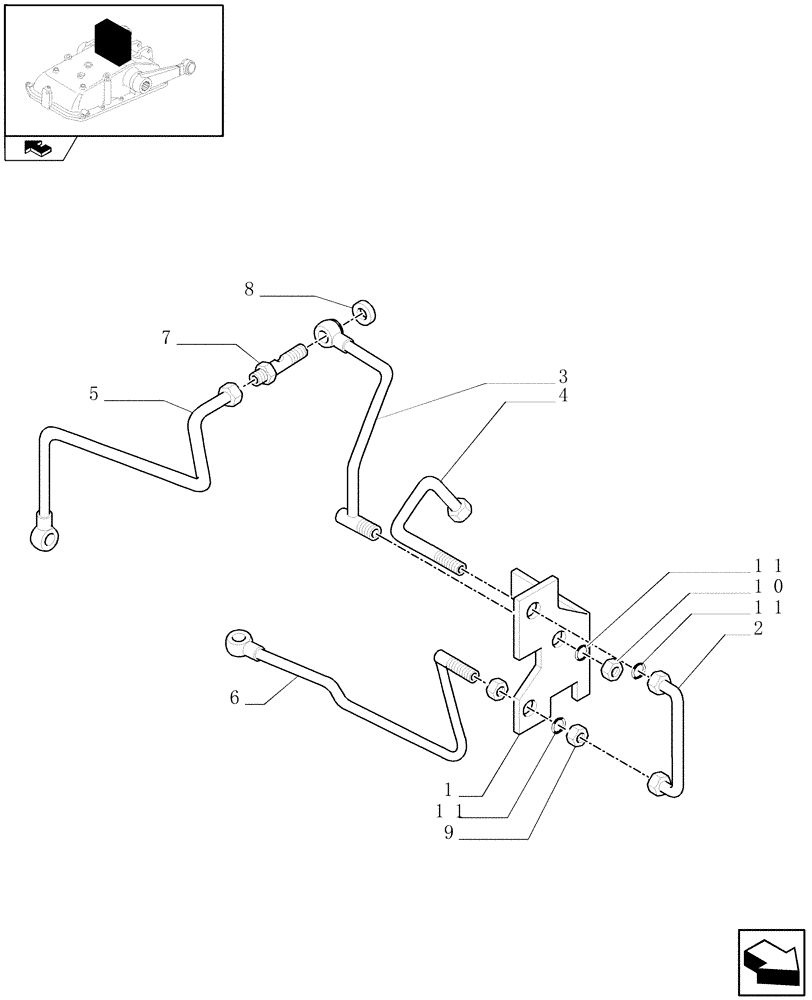

Запчасти Case IH FARMALL 60 (1.82.7/06) - MID-MOUNT VALVES HYDRAULIC CONNECTION FOR REMOTES WITH FLOW CONTROL (VAR.336560) (07) - HYDRAULIC SYSTEM

1

5093775

SUPPORT

1шт.

2

5093770

PIPE

1шт.

3

87644862

PIPE

Manifold Return

1шт.

4

87644866

PIPE

Manifold Pressure, Serial Range: -C6570

1шт.

4

84250670

PIPE

, Start Serial: D6570

1шт.

5

87391316

TUBE

Remote Valve Return

1шт.

6

84178766

PIPE

Manifold Delivery

1шт.

7

87640345

HYD CONNECTOR,M22 x 1.5 x M22 x 1.5

1шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

9

5092958

BHD LOCK NUT,1" 1/4 UNF

6шт.

10

5092959

NUT

1шт.

11

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

3шт.
