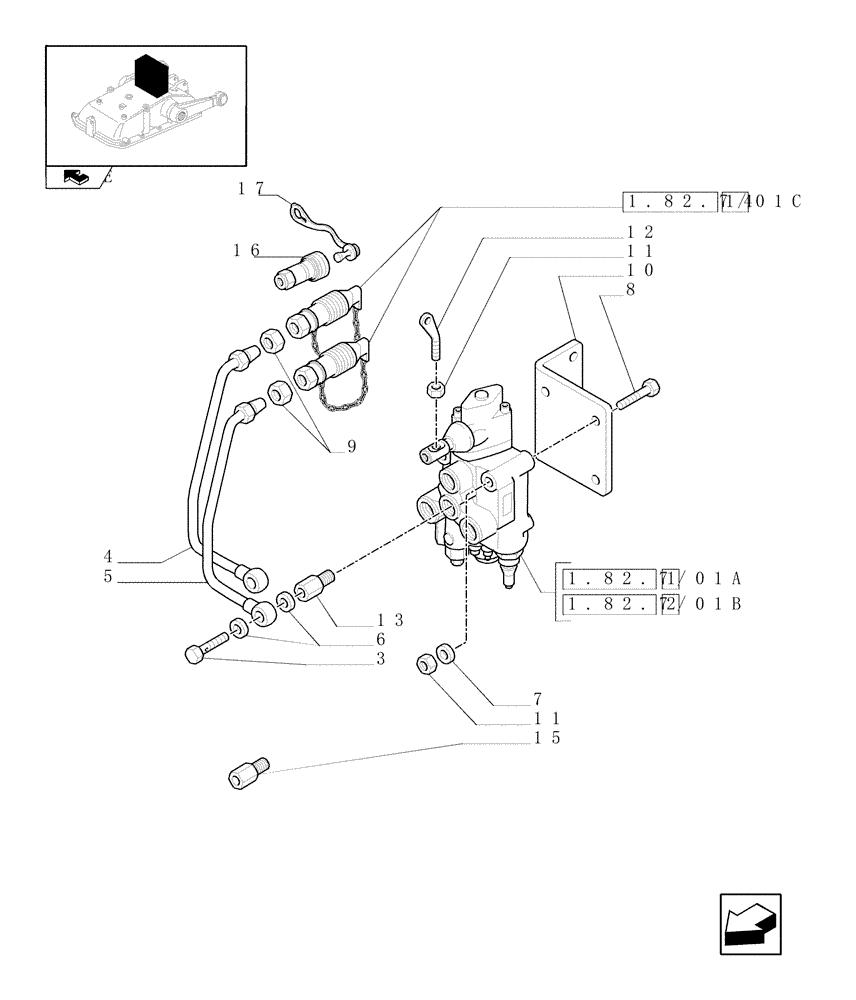

Запчасти Case IH FARMALL 60 (1.82.7/01[01]) - 1 CONTROL VALVE - CONTROL VALVE AND QUICK COUPLINGS (VAR.335366-335412) (07) - HYDRAULIC SYSTEM

1

5091240

HYDRAULIC VALVE

ASSY, VAR.335366

1шт.

1 Control Valve S/D

1шт.

2

5095109

HYD VALVE SECTION

ASSY, VAR.335412

1шт.

1 Control Valve S/D W/Kick Out

1шт.

3

5100984

BANJO BOLT,M18 x 1.5, 34mm L

5шт.

4

5092065

TUBE

Quick Coupling, First, 449MM

1шт.

5

5092067

TUBE

Quick Coupling, Second, 415MM

1шт.

6

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

13шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

Jesi Plant

1шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

Ankara Plant

1шт.

8

16044421

SCREW,Hex, M8 x 60mm, Cl 8.8

2шт.

9

5129168

BHD LOCK NUT,M24 x 1.5

6шт.

10

5092076

SUPPORT

1шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

12

5089075

EYEBOLT,M8

1шт.

13

5092080

SPACER,M18 x 1.5 Male ORFS x M18 x 1.5 Female ORFS

2шт.

14

5093853

COUPLING, QUICK, FEM,Black

Black

2шт.

Ankara Plant

1шт.

15

5121789

REDUCER,M18 x 1.5 M ORB; M18 x 1.5 F ORB

1шт.

16

5189322

QUICK MALE COUPLING,66mm L

include p/n 1534623C1

2шт.

Jesi Plant

1шт.

1534623C1

SEAL KIT

1шт.

17

5186723

DUST CAP,24mm, Black

Black

2шт.

Jesi Plant

1шт.
