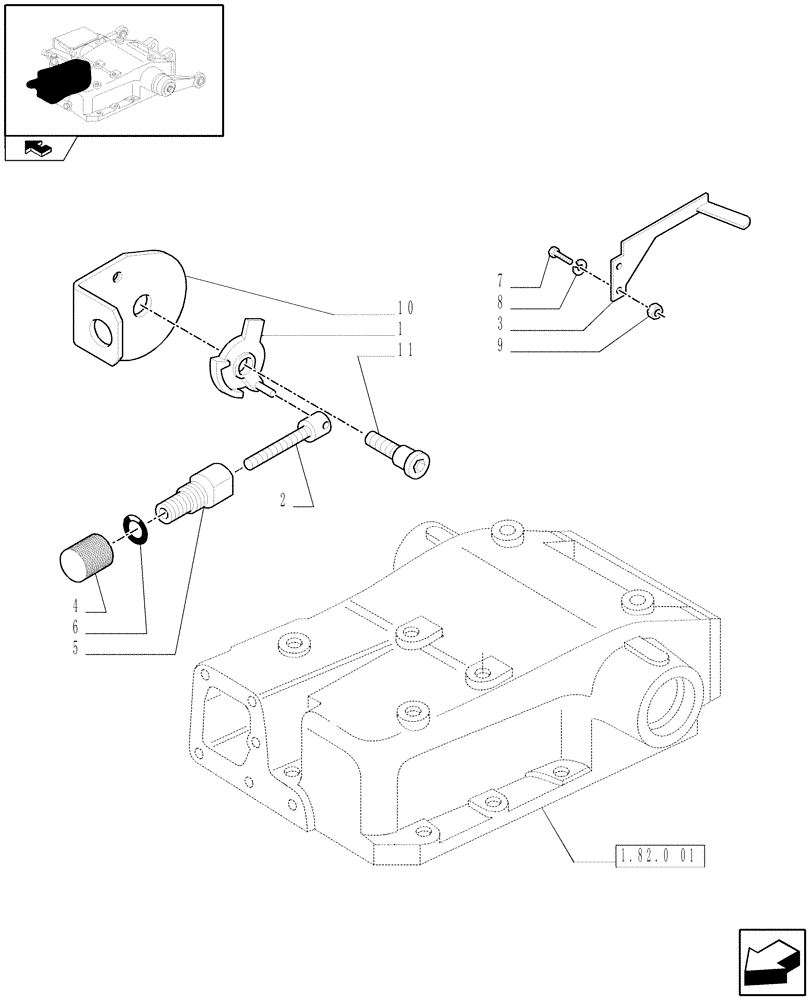

Запчасти Case IH FARMALL 60 (1.82.5/01) - LIFTOMATIC RANGE LIMITER DEVICE (VAR.335558) (07) - HYDRAULIC SYSTEM

1

47134216

SECTOR

TOOTHED SECTOR

1шт.

2

47134219

ADJUSTMENT SCREW,M8 x 1.25 x 63mm L

1шт.

3

5098049

SUPPORT

1шт.

4

47134218

KNOB

1шт.

5

5194677

BOLT,Bolt

1шт.

6

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

7

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

8

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

4шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

10

87696283

SUPPORT

1шт.

11

5194674

HEX SOC SCREW,Hex, M14 x 1.5 x 47mm

1шт.
