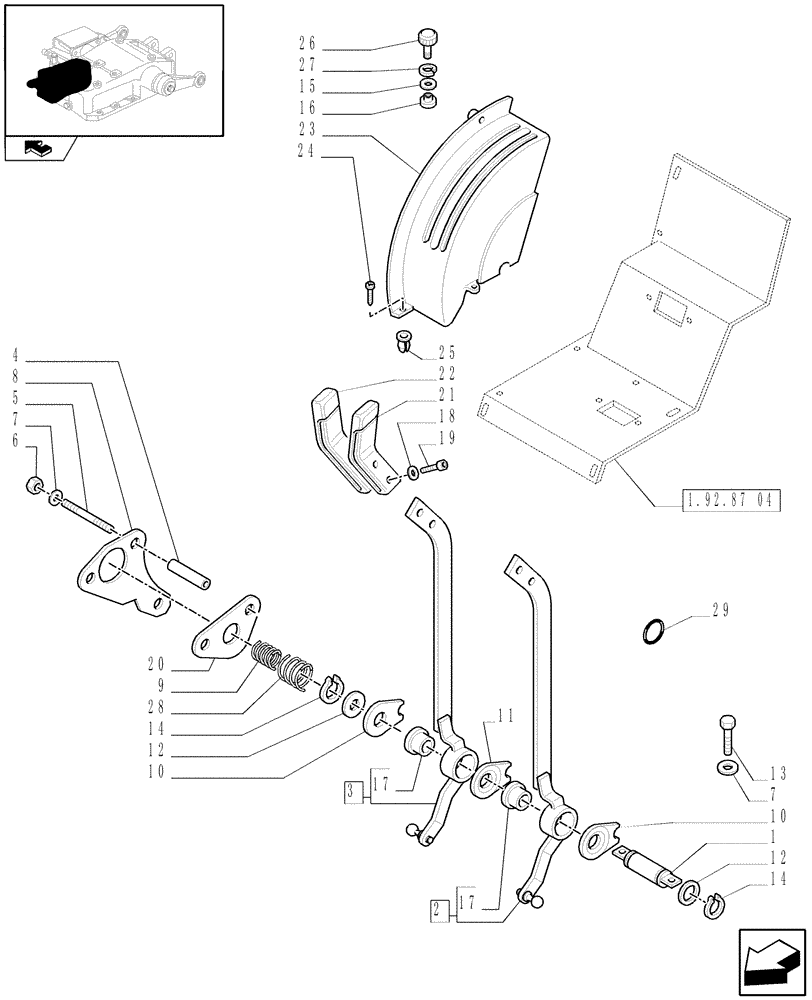

Запчасти Case IH FARMALL 60 (1.82.5[01]) - LIFT CONTROLS - HANDLE AND LEVERS - L/CAB (07) - HYDRAULIC SYSTEM

1

5133375

PIN,20mm OD x 100mm L

1шт.

2

5097767

LEVER

1шт.

3

5097769

LEVER

1шт.

4

5117204

SPACER,8.5mm ID x 12mm OD x 51.5mm L

2шт.

5

13518021

STUD,M8 x 70mm L

3шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

5шт.

8

5089614

SHIELD

1шт.

9

4952761

SPRING,Compression, 34mm OD x 25.5mm L

1шт.

10

5165184

PLATE

2шт.

11

5165246

PLATE

1шт.

12

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

2шт.

13

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

14

11066976

SNAP RING,M21, Ext

2шт.

15

5108290

WASHER,10.5mm ID x 18mm OD x 3mm Thk

2шт.

16

47133761

STOP

2шт.

17

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

2шт.

18

10569074

LOCK WASHER

4шт.

19

14302928

BOLT,M4 x 0.7 x 10mm, Cl 8.8

4шт.

20

5089939

SPACER

1шт.

21

5126318

KNOB,Black

1шт.

22

5126315

KNOB,Black

1шт.

23

5097695

SELECTOR CASE

1шт.

24

15959504

SELF-TAP SCREW,Pan Hd, M5 x 30

3шт.

25

14115780

BLOCK

3шт.

26

47133460

KNOB

2шт.

27

11087776

CIRCLIP,Ext., M6, BLO

2шт.

28

4973370

SPRING,Compression, 44mm OD x 38mm L

1шт.

29

14453080

O-RING,0.426" ID x 0.07"

1шт.
