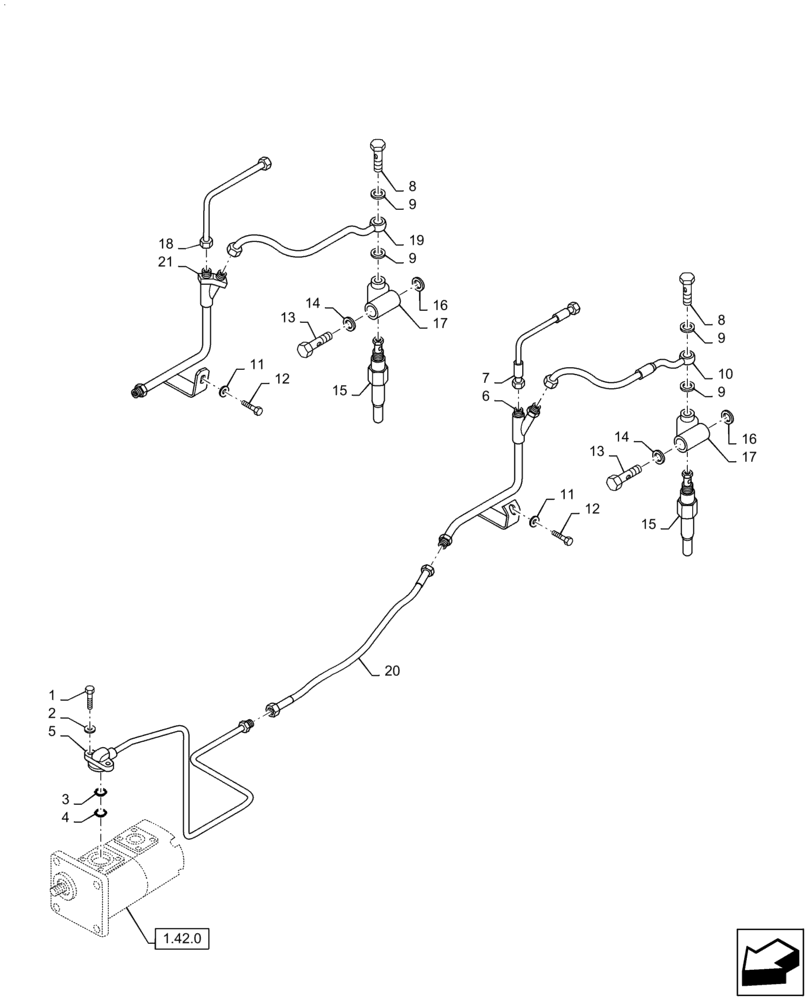

Запчасти Case IH FARMALL 60 (1.82.1[03]) - LIFTER LINES - DELIVERY PIPES AND PRESSURE REGULATING VALVE (07) - HYDRAULIC SYSTEM

1

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

2

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

3

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

3шт.

4

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

5

87487174

TUBE,596.5, 329 mm L

Hyd. Pump Pressure

1шт.

5

84121906

PIPE

Hyd. Pump Pressure

1шт.

Front Axle with/Less Slip and front Brakes, Steering Cylinder:VAR.335324-336324-335541

1шт.

Valid for 60 and 70 Models only

1шт.

6

5096000

PIPE

90 Degree Bend, Y Junction, Serial Range: -C6567

1шт.

7

5096001

HYDRAULIC HOSE,9.50 mm ID x 397.00 mm, SAE 100 R1AT

, Serial Range: -C6567

1шт.

8

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

1шт.

9

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

2шт.

10

5096002

HOSE

To Banjo Pipe, Serial Range: -C6567

1шт.

11

10569471

LOCK WASHER,Lock, 3/8"

1шт.

12

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

1шт.

13

5120450

BANJO BOLT

1шт.

14

10264560

SEAL,24mm ID x 32mm OD x 1.5mm Thk

1шт.

15

5011763

VALVE PRESSURE RELIE

1шт.

16

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

L=960 mm

1шт.

17

5120449

BODY

, Start Serial: D6567

1шт.

18

84237320

PIPE

Pressure, Start Serial: D6567

1шт.

19

84237059

PIPE

With Banjo Fitting End, Start Serial: D6567

1шт.

20

84579564

HYDRAULIC HOSE,12.7mm ID x 960mm L, SAE 100R2

To Y Junction Pipe

1шт.

21

84241042

PIPE

90 Degree Bend, Y Junction, Start Serial: D6567

1шт.
