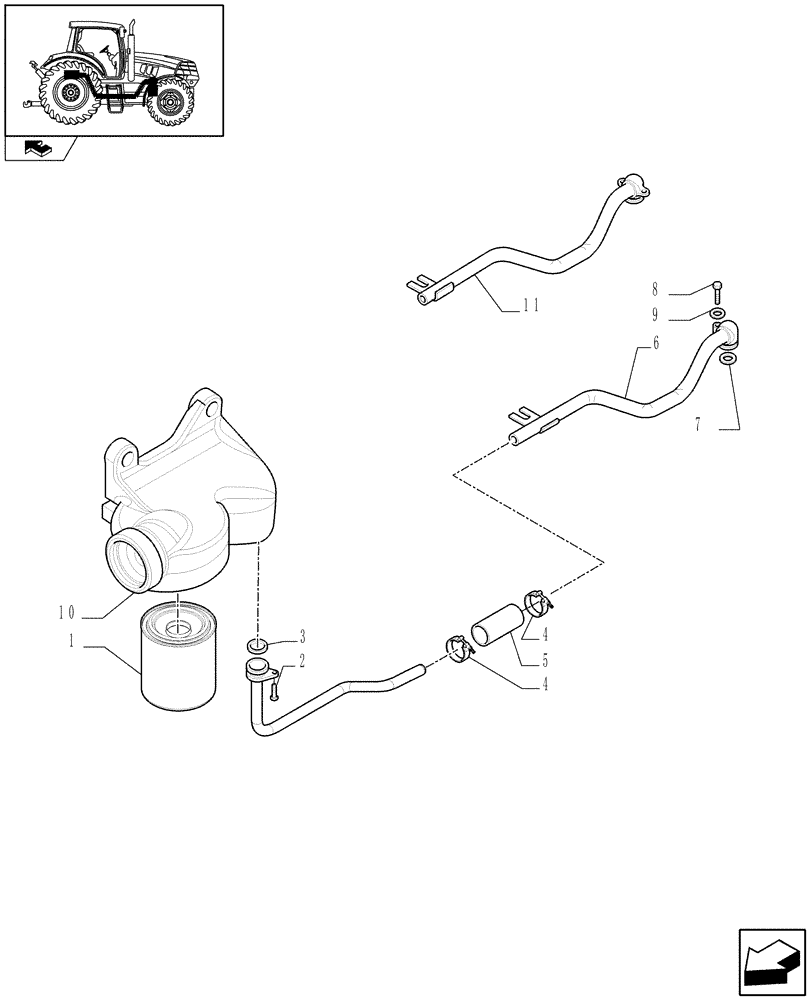

Запчасти Case IH FARMALL 60 (1.82.1[02]) - LIFTER LINES - OIL FILTER, PIPES AND SUPPORT (07) - HYDRAULIC SYSTEM

1

47131195

HYDRAULIC OIL FILTER

1шт.

Valid with FARMALL 60, JX60, JX70, JX80 Models

1шт.

2

87722852

PIPE

1шт.

2

84121904

PIPE

1шт.

Front Axle with/Less Slip and front Brakes, Steering Cylinder: VAR.335324-336324 (743907-743552)\r\n\r\n(VAR.335324-336324(743907-743552)-335541(743559-743552)

1шт.

Valid for 60 and 70 Models only

1шт.

3

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

4

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

2шт.

5

87626258

FUEL HOSE,45.00 mm ID x 90.00 mm, SAE J200

1шт.

6

84216740

PIPE

Oil Suction Rear

1шт.

7

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

2шт.

8

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

, Serial Range: -C6864

1шт.

8

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

, Start Serial: D6864

2шт.

9

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

10

87755715

SUPPORT

1шт.

11

84344763

PIPE

Oil Suction Rear, Start Serial: D6864

1шт.
