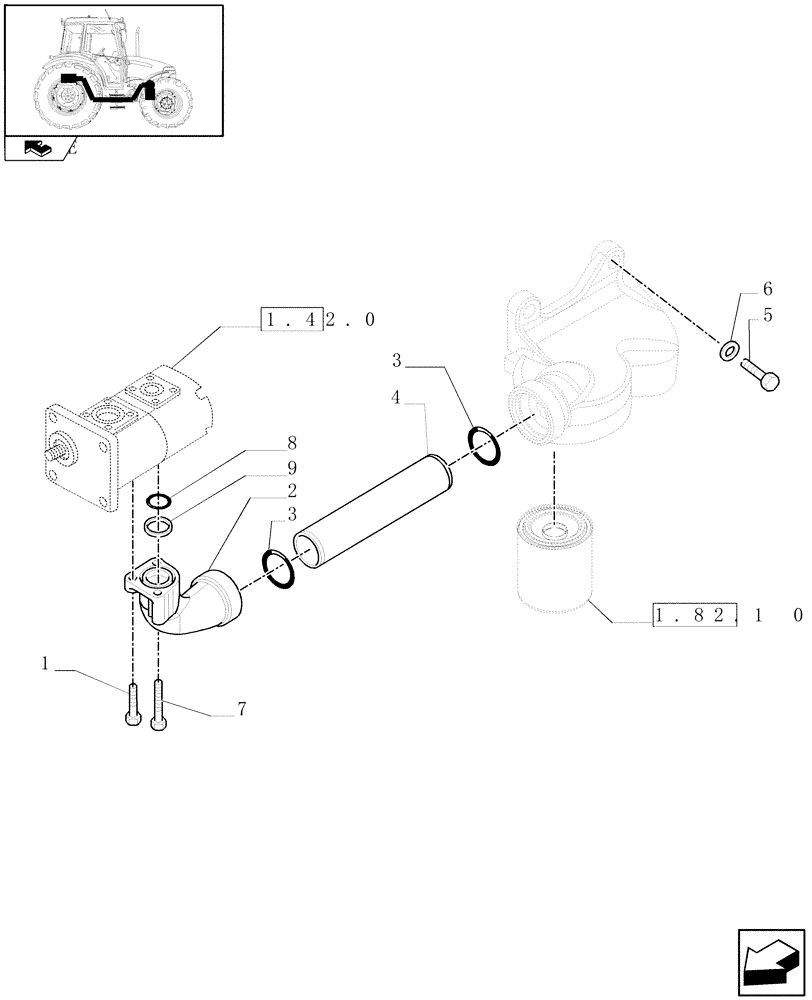

Запчасти Case IH FARMALL 60 (1.82.1[01]) - LIFTER LINES - SUCTION PIPE FROM OIL FILTER TO PUMP (07) - HYDRAULIC SYSTEM

1

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

2

87552552

HYD CONNECTOR

1шт.

3

14464281

O-RING,1.734" ID x 0.139" Width

2шт.

4

87392916

RIGID TUBE,45 mm OD x 139.5 mm L

1шт.

5

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

6

12601574

WAVE WASHER,Wave, M13

2шт.

7

14306920

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8, Full Thd

2шт.

8

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

9

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

1шт.
