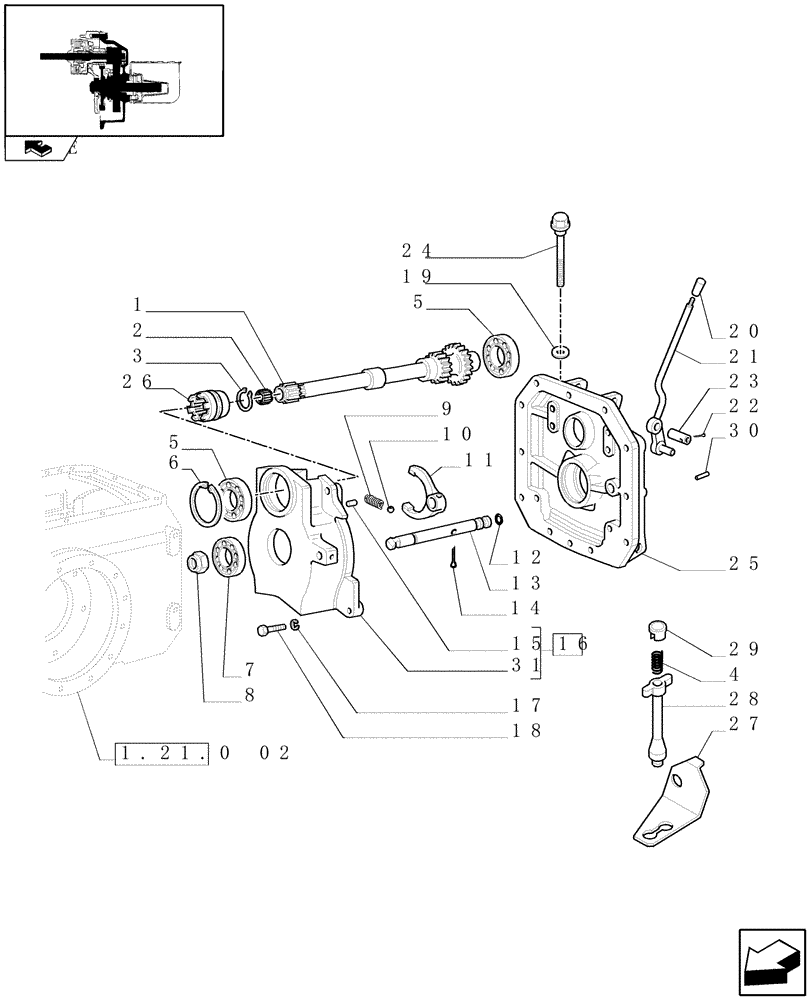

Запчасти Case IH FARMALL 60 (1.80.1/03[01]) - POWER TAKE-OFF 540/540E RPM WITH GROUND SPEED AND ISO PROTECTION SHIELD (VAR.335818) (07) - HYDRAULIC SYSTEM

1

47132985

SHAFT

1шт.

2

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

15 x 21 x 16

1шт.

3

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

4

4952341

SPRING

1шт.

5

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23

2шт.

6

11062476

SNAP RING,M90, Int

1шт.

7

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35 x 80 x 21

1шт.

8

5122985

NUT,Ring, M32, 1.5 Pitch

M32 x 1.5

1шт.

9

4994342

SPRING,8mm OD x 30mm OAL

1шт.

10

20063390

BALL,8.73mm OD

1шт.

11

5097820

FORK

1шт.

12

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

13

84237856

PIN,18mm OD x 156mm L

1шт.

14

13910470

ROLL PIN,M6 x 32, Coiled

1шт.

15

10839710

DOWEL,M10 x 15.00mm

10 x 15

2шт.

16

5109739

SUPPORT

Incl 15, Serial Range: -C6469

1шт.

16

84211469

COVER

Incl. 15, 31, Start Serial: D6469

1шт.

17

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

4шт.

18

15540631

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

4шт.

19

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

20

5087838

KNOB

1шт.

21

87732061

LEVER

, Serial Range: -C6426

1шт.

21

84217535

LEVER

, Start Serial: D6426

1шт.

22

81827571

COTTER PIN

1шт.

23

5117036

PIN,10mm OD x 34mm L

1шт.

24

47134050

DIPSTICK

1шт.

25

5118325

COVER

, Serial Range: -C6426

1шт.

25

84211460

COVER

, Start Serial: D6426

1шт.

26

5167983

SPLINED COUPLING,12T

1шт.

27

87732042

SUPPORT

1шт.

28

5096582

SELECTOR

1шт.

29

5153685

CUP

1шт.

30

14163170

LOCK PIN,M4 x 24, Slotted

1шт.

31

84211461

COVER

, Start Serial: D6469

1шт.
