(1.75.0[02]) - ELECTRIC CONTROLS

Запчасти Case IH FARMALL 60 (1.75.0[02]) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

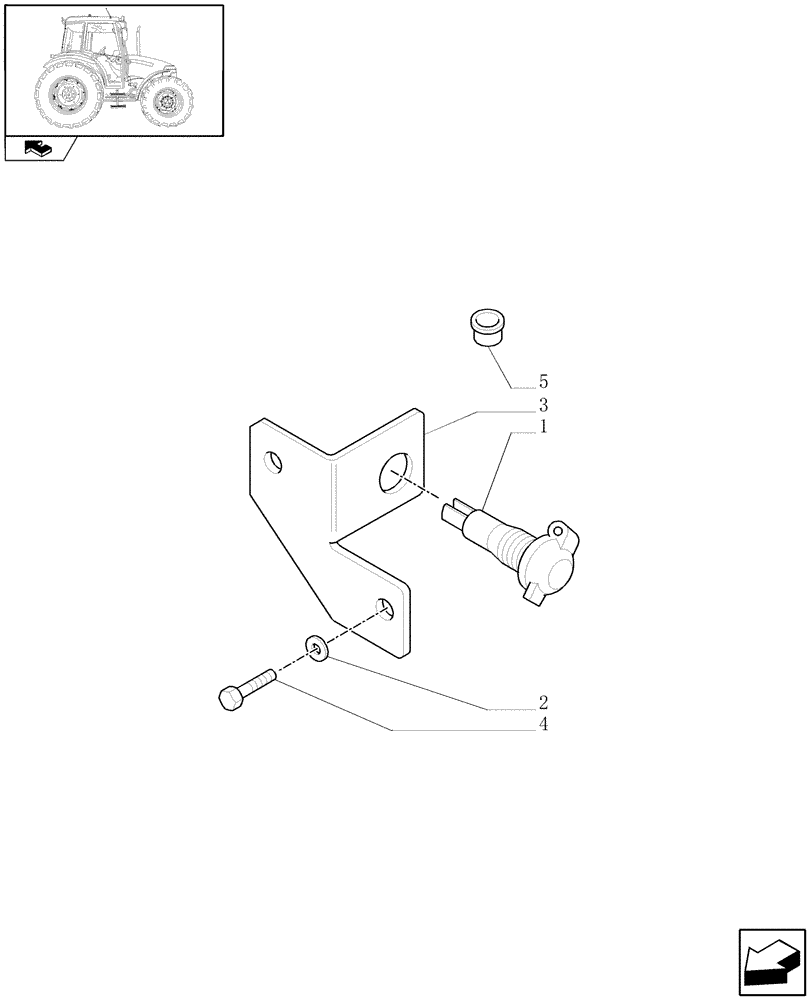

Схема запчастей Case IH FARMALL 60 - (1.75.0[02]) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS
home
1
5
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84191453

SOCKET,12/24V, 20A

1шт.

EC-Socket Assy Auxiliary Electric Power

1шт.

2

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

M8 L/CAB

2шт.

3

5089484

SUPPORT

L/CAB

1шт.

4

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

L/Cab

2шт.

5

87573793

CUP PLUG,7mm OD, 7mm High, 0.80mm Thk

D=7, W/CAB

3шт.

Выбрано товаров: 6
