Запчасти Case IH FARMALL 60 (1.75.0[01]) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

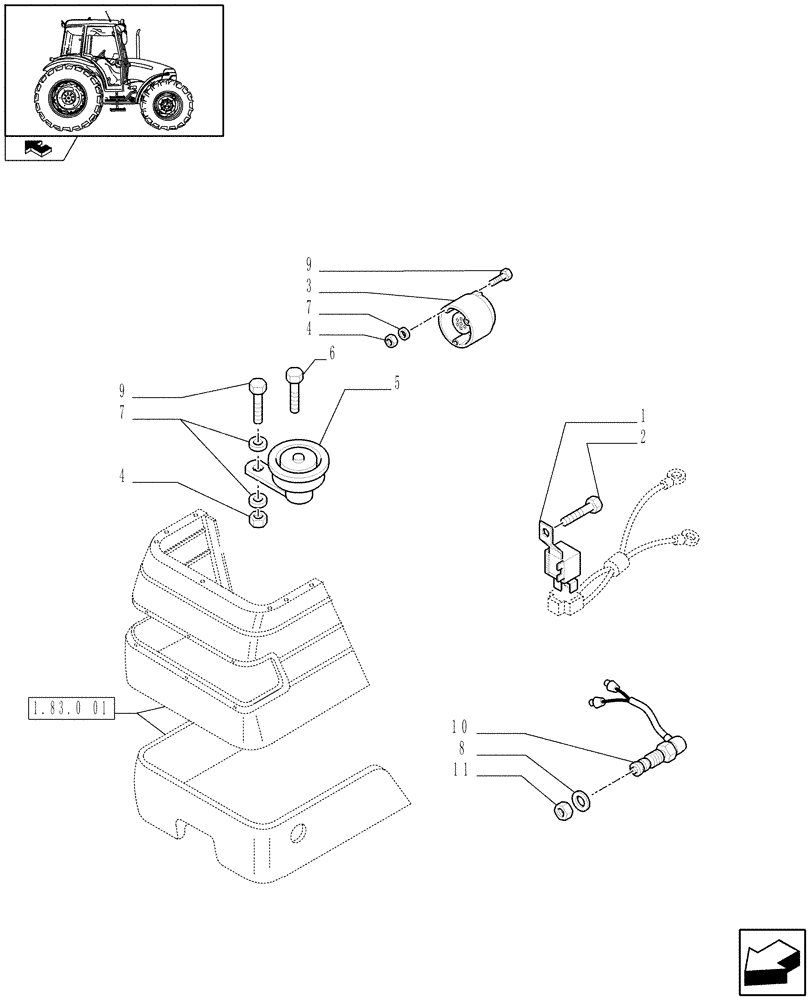

Схема запчастей Case IH FARMALL 60 - (1.75.0[01]) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS
4
3
9
4
9
2
5
11
1
7
10
6
8
1.83.0 01
home
7

Артикул

Название

Примечание

Количество

1

5086059

RELAY

12V-20A

1шт.

Front Axle with Lim. Slip and Front Brakes (30KM/H), VAR.335324 (743907)

1шт.

Valid for 60 and 70 Models only

1шт.

2

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

3

5086173

ELEC CONNECTOR

1шт.

4

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

5

5087129

HORN

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

M8

4шт.

8

12601674

WAVE WASHER,Wave, M15

1шт.

9

10390211

SCREW,Sl Pan Hd, M5 x 35mm, Cl 5.8

3шт.

10

87660978

NEUTRAL START SWITCH

, Serial Range: -C6433

1шт.

10

84219064

NEUTRAL START SWITCH

Starter Safety switch, Start Serial: D6433

1шт.

11

10791311

THIN NUT,M14 x 1.5, Cl 04

1шт.

Выбрано товаров: 14
