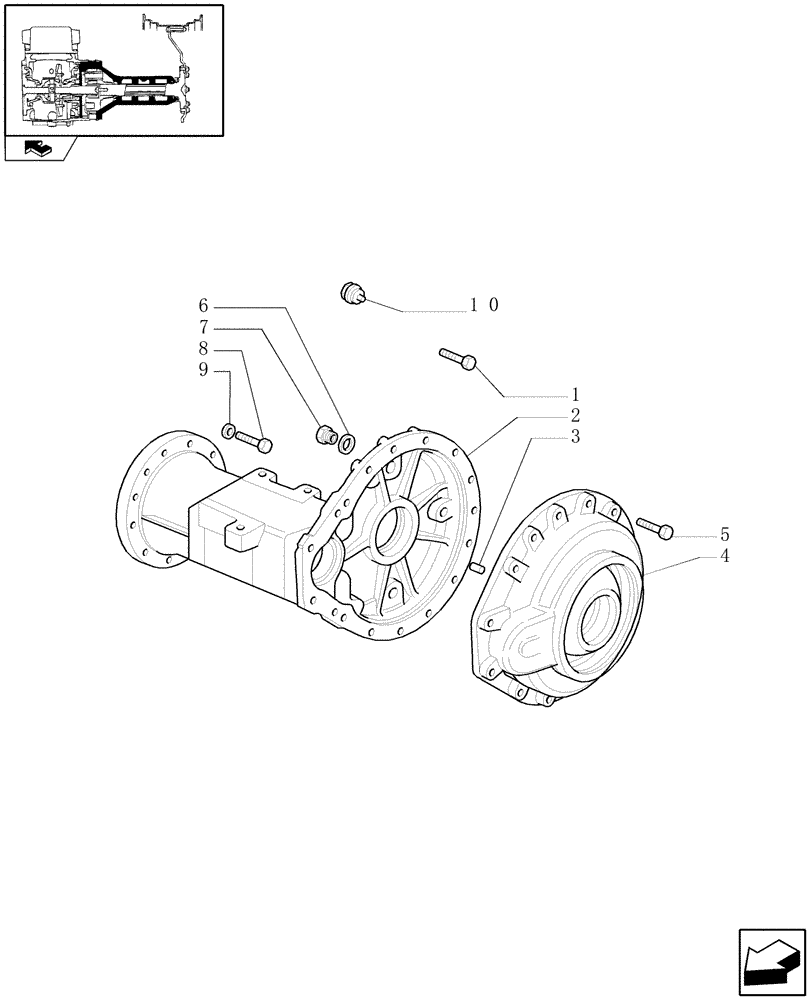

Запчасти Case IH FARMALL 60 (1.48.1[03]) - SIDE REDUCER BOX AND COVERS (05) - REAR AXLE

1

15541024

BOLT,Hex, M12 x 1.25 x 60mm, Cl 8.8

5шт.

2

5098565

FINAL DRIVE HOUSING

RH

1шт.

Valid for 80 Model only

1шт.

2

5098577

FINAL DRIVE HOUSING

LH

1шт.

Valid for 80 Model only

1шт.

2

5098560

FINAL DRIVE HOUSING

RH

1шт.

2

5098572

FINAL DRIVE HOUSING

LH

1шт.

3

10839910

DOWEL,15mm OD x 20mm L

4шт.

4

5116343

COVER

2шт.

Valid for 60 and 70 Models only

1шт.

4

5140205

COVER

2шт.

Valid for 80 Model only

1шт.

5

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

Valid for 60 and 70 Models only

1шт.

5

11307021

BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd

30шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

6шт.

7

10305111

PLUG,M22 x 1.5 x 21, Cl5.8

4шт.

8

15540831

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

17шт.

9

11198679

BELLEVILLE WASHER,13mm ID x 24mm OD x 0.6mm Thk

21шт.

10

84209347

PLUG

Magnetic

2шт.
