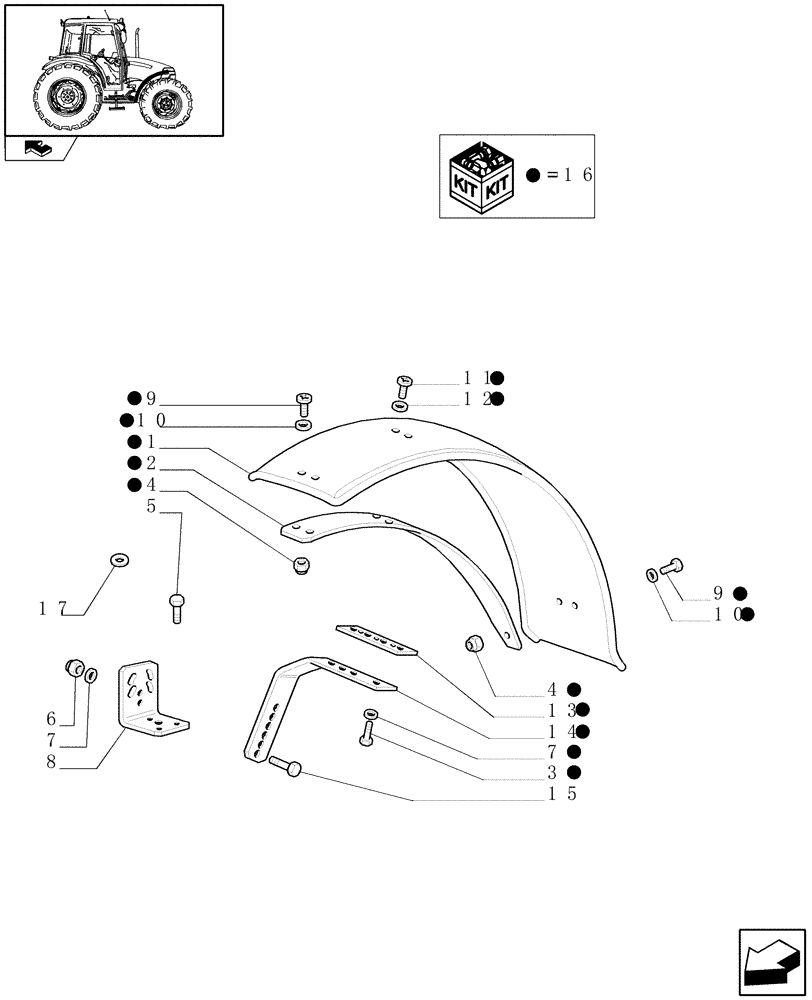

Запчасти Case IH FARMALL 60 (1.43.0/01) - 4WD FRONT MUDGUARDS - 340 MM. (VAR.339860) (04) - FRONT AXLE & STEERING

1

5137714

COVER ASSY

1шт.

2

5152356

FRAME

LH

1шт.

2

5152357

FRAME

RH

1шт.

3

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

4

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

3шт.

5

14233834

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

3шт.

6

16105021

LOCK NUT,M12 x 1.25, Cl 10

4шт.

7

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

8

5152354

SUPPORT

2шт.

9

14780511

SCREW,Cross Rec Cheese Hd, M8 x 25mm, Cl 5.8

3шт.

10

12646204

WASHER,8.15mm ID x 35mm OD x 3mm Thk

3шт.

11

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

2шт.

12

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

2шт.

13

5152355

PLATE

1шт.

14

5152353

ARM

LH

1шт.

14

5152352

ARM

RH

1шт.

15

15541024

BOLT,Hex, M12 x 1.25 x 60mm, Cl 8.8

4шт.

16

5090210

FENDER

RH

1шт.

16

5090211

FENDER

LH

1шт.

17

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

4шт.
