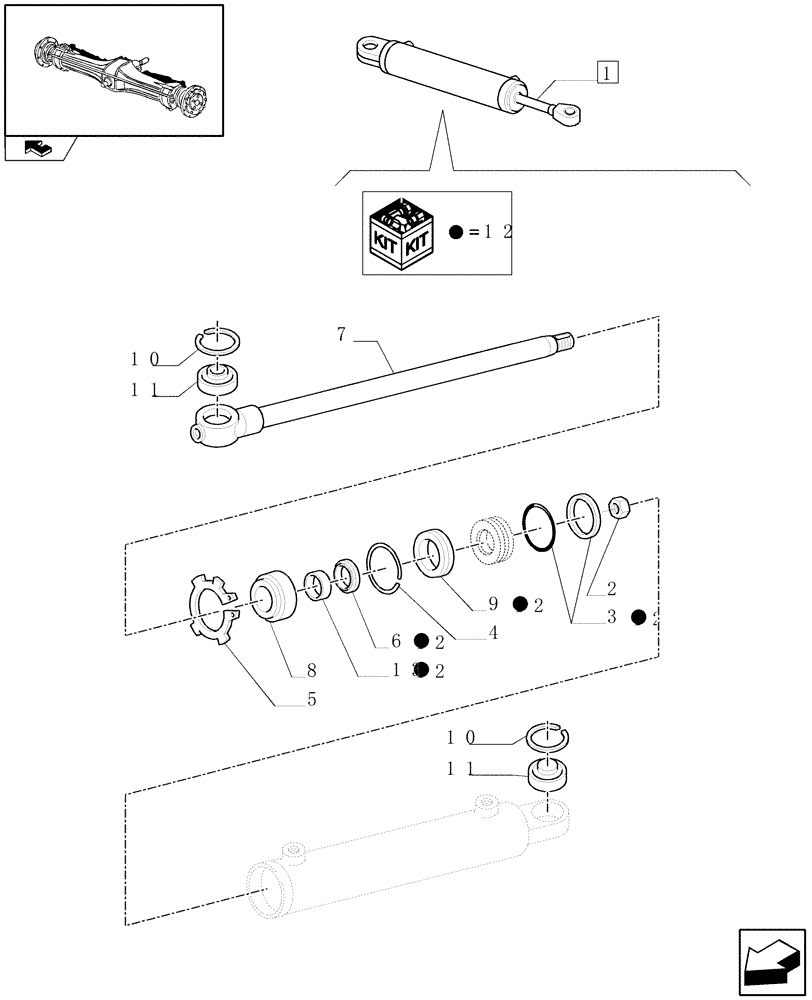

Запчасти Case IH FARMALL 60 (1.40.0/12A) - HYDRAULIC STEERING CYLINDER - BREAKDOWN (04) - FRONT AXLE & STEERING

1

5189895

STEERING CYLINDER,Double Acting, 22mm Rod, 202mm Stroke

356MM

2шт.

2

5190904

LOCK NUT

2шт.

3

5190909

SEAL

2шт.

4

5190912

LOCKING RING

2шт.

5

5190907

SNAP RING

2шт.

6

5190911

SEAL

2шт.

7

5190921

THREADED ROD

2шт.

8

5190590

SPOOL

2шт.

9

5190589

RING

2шт.

10

5190903

LOCKING RING

4шт.

11

5190901

BUSHING

4шт.

12

5190591

SEAL KIT

2шт.

13

5190549

SCRAPER RING

2шт.
