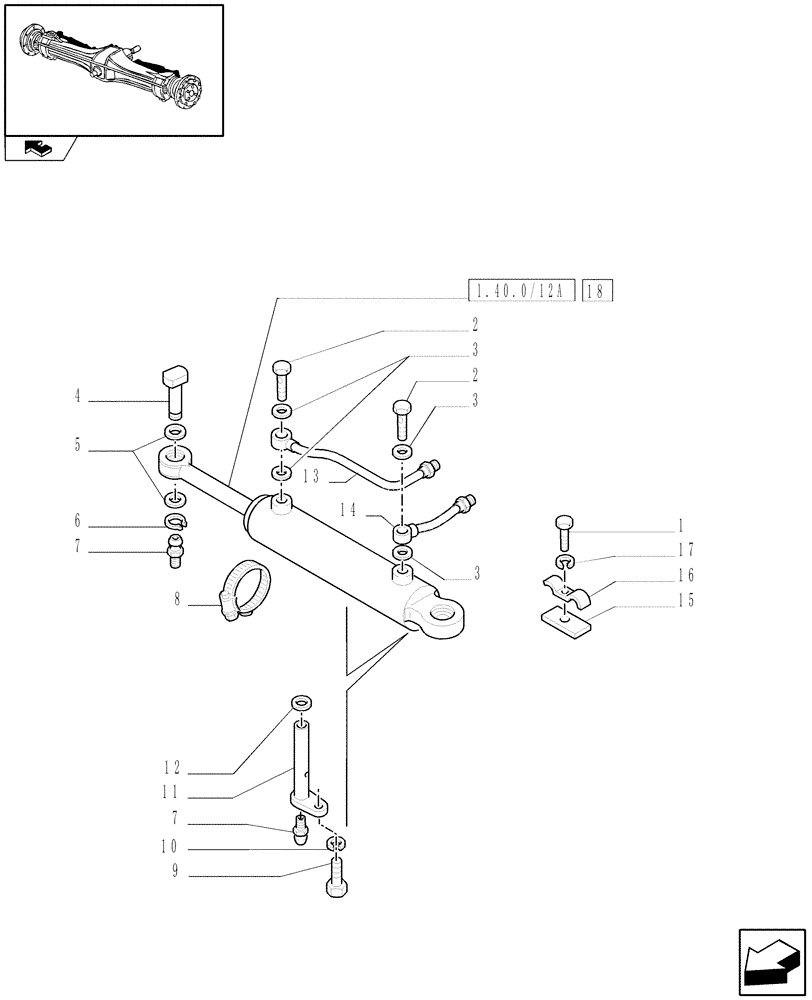

Запчасти Case IH FARMALL 60 (1.40.0/12) - 4WD FRONT AXLE - HYDRAULIC STEERING CYLINDER (04) - FRONT AXLE & STEERING

1

10902214

SCREW,Hex, M6 x 16mm

1шт.

2

4864083

BANJO BOLT,M14 x 1.5 x 30mm

2шт.

3

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

14.86x22.23x2

4шт.

4

4987671

PIN,30mm OD x 61mm L

1шт.

5

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

2шт.

6

11066876

SNAP RING,M20, Ext

2шт.

7

87414

LUBE NIPPLE,1/4" - 28

1шт.

8

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

D=50-70

1шт.

9

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

11

4997489

PIN,19.99mm OD x 88mm L

1шт.

12

5100731

WASHER,20.5mm ID x 28mm OD x 10mm L

1шт.

13

5144505

HYD TUBE

1шт.

14

5144503

FITTING

1шт.

15

5138294

SUPPORT

1шт.

16

4999554

CLAMP,2 Hoses

1шт.

17

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

18

5189895

STEERING CYLINDER,Double Acting, 22mm Rod, 202mm Stroke

356MM

1шт.
