Запчасти Case IH FARMALL 60 (1.40.0/06[01]) - 4WD FRONT AXLE - BEVEL GEAR/PINION SET (04) - FRONT AXLE & STEERING

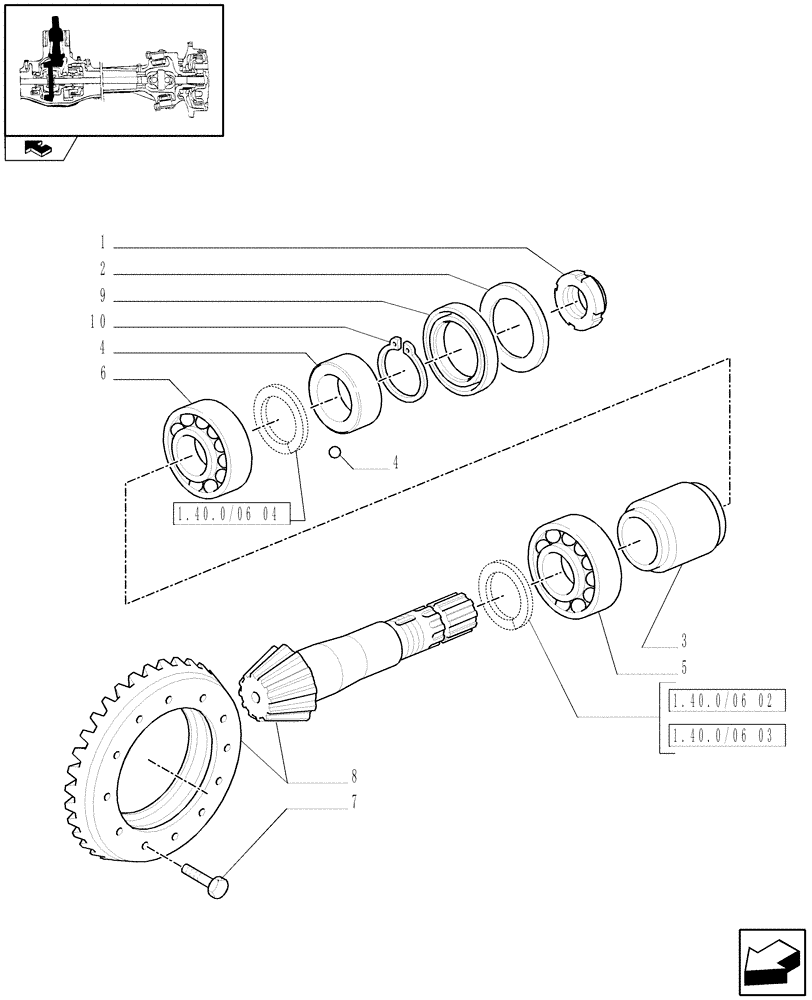

Схема запчастей Case IH FARMALL 60 - (1.40.0/06[01]) - 4WD FRONT AXLE - BEVEL GEAR/PINION SET (04) - FRONT AXLE & STEERING
6
5
4
10
7
8
1.40.0/06 04
home
1.40.0/06 03
1.40.0/06 02
1
3
2
9
4

Артикул

Название

Примечание

Количество

1

4997450

RING NUT

1шт.

2

4997451

SEAL PROTECTION,45.4mm ID x 75mm OD x 1mm Thk

1шт.

3

4997452

SPACER

1шт.

4

4997464

SEALING RING,35.1mm ID x 45mm OD x 20mm Thk

SEALRING

1шт.

5

28042230

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm W

1шт.

6

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

1шт.

7

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

8

5119221

BEVEL GEAR

1шт.

9

5135294

SEAL,45mm ID x 75mm OD x 12mm Thk

1шт.

10

11067776

SNAP RING,M29, Ext

1шт.

Выбрано товаров: 10
