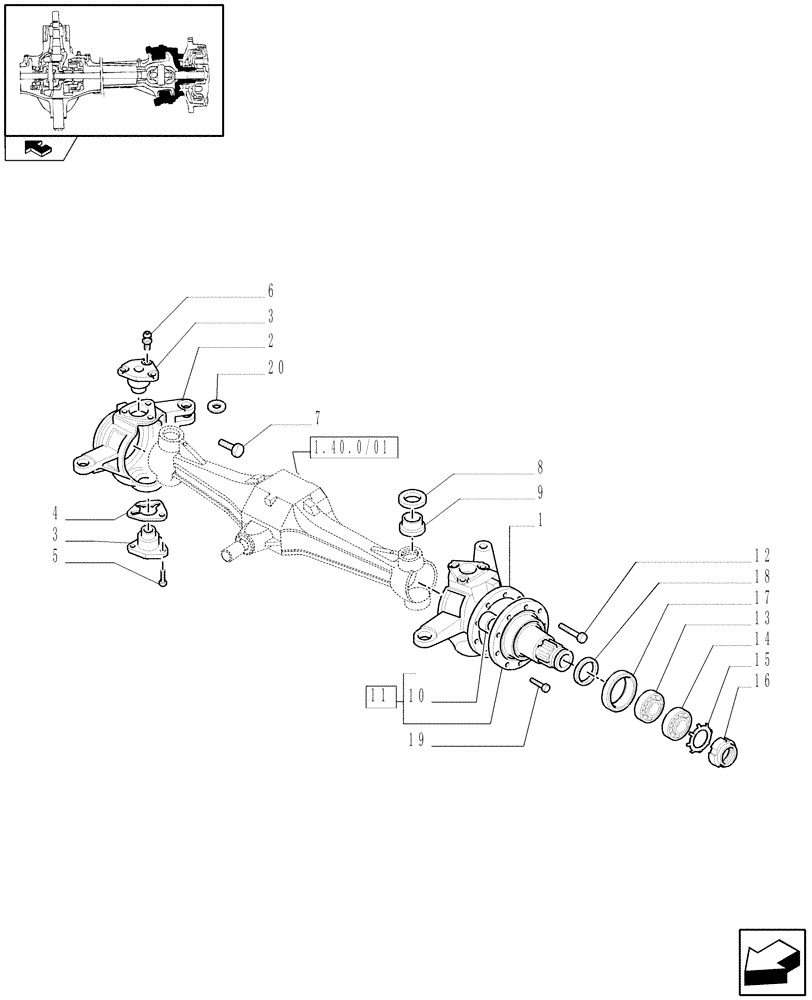

Запчасти Case IH FARMALL 60 (1.40.0/02) - 4WD FRONT AXLE - STEERING KNUCKLE (04) - FRONT AXLE & STEERING

1

5126626

STEERING KNUCKLE

1шт.

2

5126627

STEERING KNUCKLE,RH

1шт.

3

5122540

PIN

3шт.

4

5100793

SHIM,.30mm Thk

1шт.

5

14233434

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

6

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

1шт.

7

5126628

BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9

2шт.

8

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

50 x 62 x 7

4шт.

9

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

4шт.

10

5135385

BUSHING,30.05mm ID x 34.13mm OD x 20mm L

2шт.

11

5126631

SHAFT

2шт.

12

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

13

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

14

24903460

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

2шт.

15

5116725

LOCK WASHER,45mm ID x 69mm OD x 1.25mm Thk

2шт.

16

5124794

RING NUT,M45 x 1.5

2шт.

17

5135387

OIL SEAL,90mm ID x 120mm OD x 13mm Thk

2шт.

18

5119545

WASHER,42.5mm ID x 63mm OD x 3mm Thk

2шт.

19

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

16шт.

20

5166180

SPACER,10.2mm ID x 20mm OD x 9mm L

2шт.
