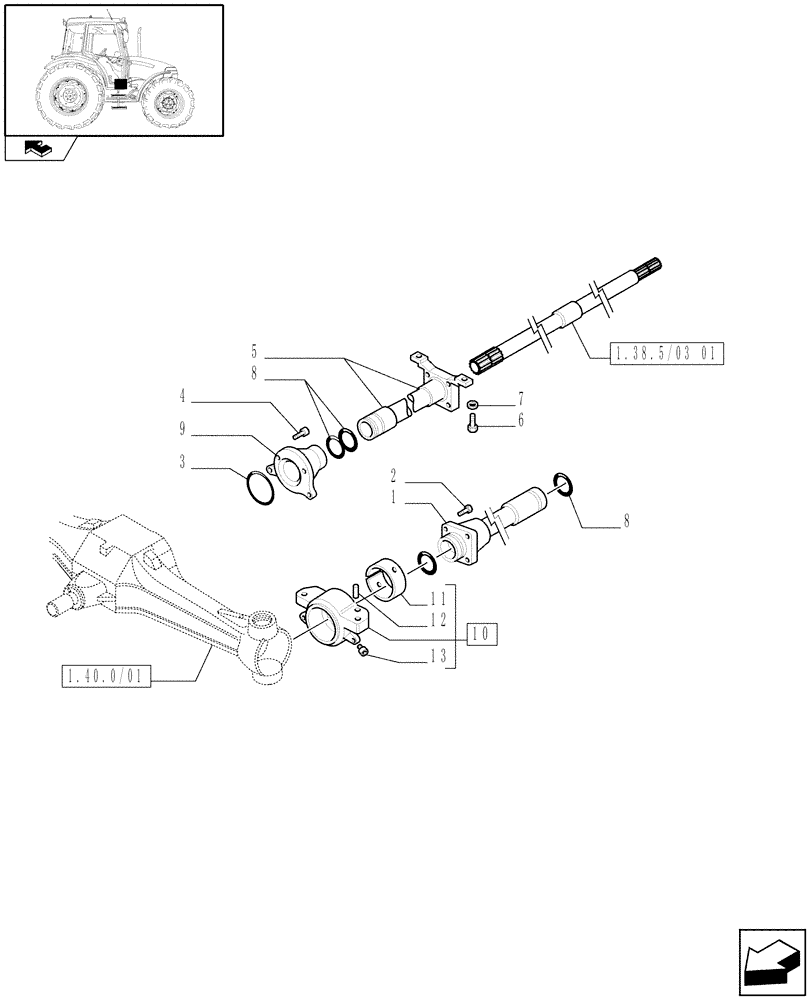

Запчасти Case IH FARMALL 60 (1.38.5/03[03]) - 4WD WATER PROOF TRANSMISSION - SLEEVE AND SUPPORT (VAR.330449) (04) - FRONT AXLE & STEERING

1

5146945

SHIELD

1шт.

2

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

3

14472380

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

1шт.

4

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

5

87499321

GUARD

1шт.

6

15540634

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

2шт.

7

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

2шт.

8

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

3шт.

9

5149419

SLEEVE

1шт.

10

5149418

SUPPORT

1шт.

11

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

12

10837710

DOWEL,M10 x 25

1шт.

13

13407214

LUBE NIPPLE,M10 x 1

1шт.
